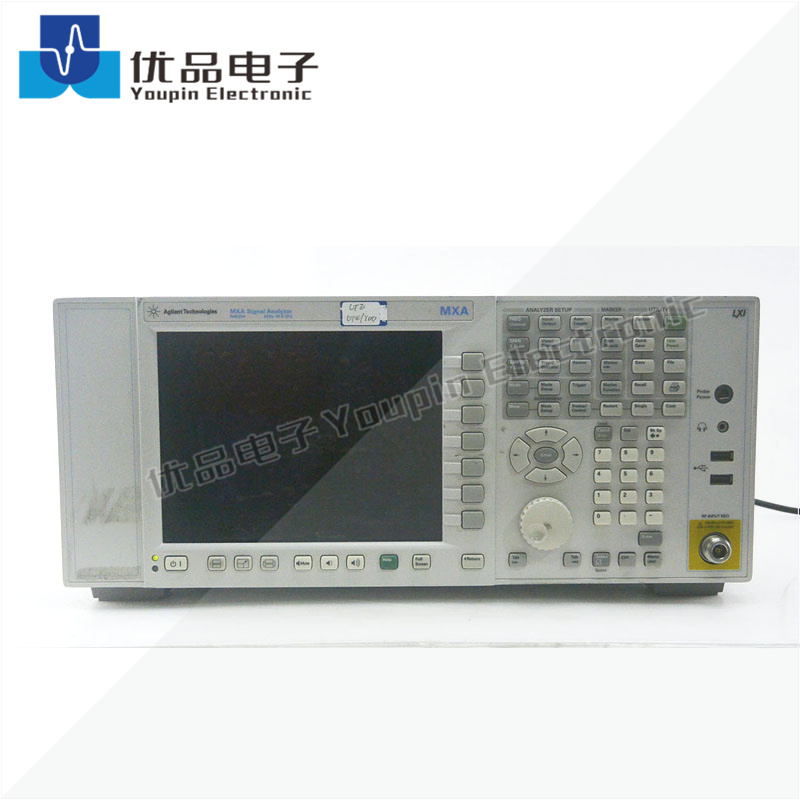

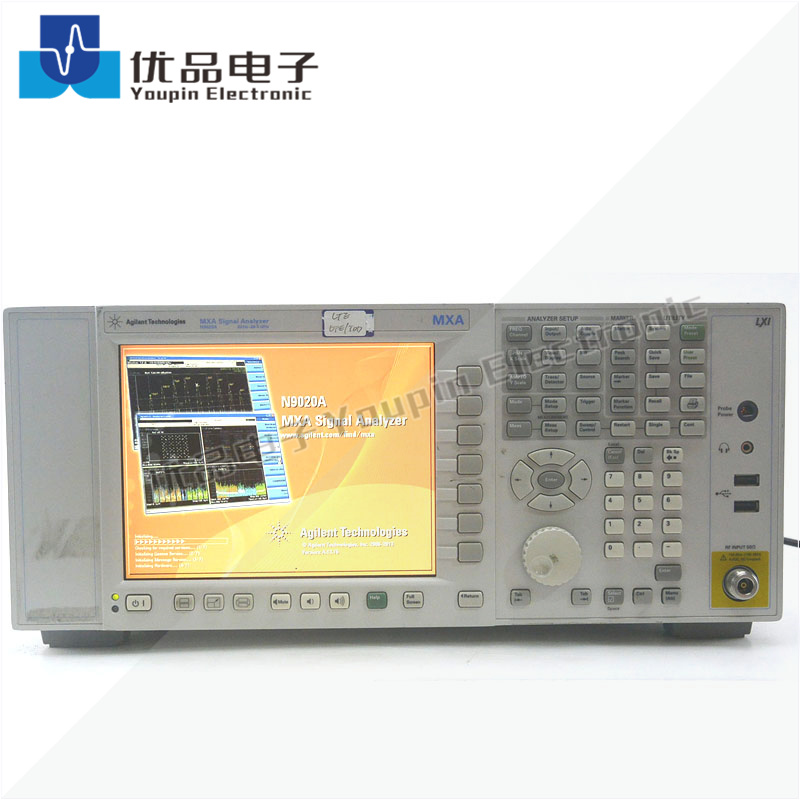

Agilent安捷伦 N9020A MXA 频谱分析仪

  • N9020A
  • Agilent安捷伦
  • 0512-68050516
  • 18914031336
  • 1931048209
  • 可销售  可租赁  可维修  可回收


使用 N9020A MXA 加速无线测试
MXA 能够帮您加快新型无线器件的开发速度,使之尽快投入制造,提前推入市场。它的多功能特性有利于进行快速调整,以满足不断提高的测试要求,还可支持多种制式、新老产品和器件。

实时频谱分析功能作为新型和现有 MXA 的升级选件,帮助您在日益复杂的信号环境中捕获和分析最罕见的信号。结合 160 MHz 宽带分析带宽,MXA 支持您对新一代无线通信和连通性信号进行精确分析。

N9020A MXA 信号分析仪是 X 系列频谱分析仪中的一员,它是综合利用仪器、测量和软件进行信号分析的演进方法。它的灵活性能够满足您的多个产品和项目的商业和技术要求――无论是现在还是在未来。




功能
10 Hz 3.68.413.6 26.5 GHz;使用是德科技智能混频器可将频率扩展到 110 GHz,使用其他厂商的混频器可扩展到高达 1.1 THz
25 MHz(标配)、4085125 160 MHz 分析带宽
新设备标配的选件 B40DP2 MPB 可提供快速扫描功能;选配的选件 FP2 可提供快速功率测量功能
实时频谱分析仪功能,可以 100 截获持续时间最短达 3.57 µs 的信号

性能
± 0.23 dB 绝对幅度精度
-114 dBc/Hz 相位噪声,10 kHz 偏置时;+20 dBm 三阶截获(TOI
-166 dBm 显示的平均噪声电平(DANL),使用前置放大器;使用本底噪声扩展功能(选件 NFE),可进一步改善 10 dB
-78 dB W-CDMA ACLR 动态范围(噪声校正功能启动)

测量应用和软件
支持超过 25 种测量应用软件,包括蜂窝通信、无线连通性、数字视频和通用测试
MXA 内部运行的 89600 VSA 软件可执行超过 75 种信号格式的先进信号分析
MATLAB 数据分析软件可执行通用数据分析、显示和自动测量
标配包括 Keysight PowerSuite 一键式功率测量

自动测试和通信接口
 符合 LXI 标准,并支持 SCPI IVI-COM
USB 2.01000Base-T LANGPIB
通过 PSA8566/68 856x 可实现远程编程语言兼容性
通用的 X 系列用户界面/开放式 Windows 7 操作系统(标配)



N9020A-1CM    Rack mount kit
N9020A-1CN    Front handle kit
N9020A-1CP    Rackmount and handle kit
N9020A-1CR    Rack slide kit
N9020A-503     Frequency range, 10 Hz to 3.6 GHz
N9020A-508     Frequency range, 10 Hz to 8.4 GHz
N9020A-513     Frequency range, 10 Hz to 13.6 GHz
N9020A-526     Frequency range, 10 Hz to 26.5 GHz
N9020A-A6J     ANSI Z540-1-1994 Calibration
N9020A-AKT    Getting Started Guide MXA Russian Localization
N9020A-AMG   Calibration + Uncertainties + Guardbanding (Accredited)
N9020A-B1A    Analysis bandwidth, 125 MHz
N9020A-B1X    Analysis bandwidth, 160 MHz
N9020A-B25    Analysis Bandwidth, 25 MHz
N9020A-B40    Analysis bandwidth, 40 MHz
N9020A-B85    Analysis bandwidth, 85 MHz
N9020A-BAG   Accessory Pouch
N9020A-BBA    I/Q baseband inputs, analog
N9020A-CR3    Connector, Wideband IF output
N9020A-CRP    Connector,programmable rear IF output
N9020A-DP2    Digital Processor, 2 GB Capture Memory
N9020A-DVR    DVD-ROM/CD-R/RW Drive
N9020A-EA3     Electronic attenuator, 3.6 GHz
N9020A-EDP    Enhanced display package license
N9020A-EMC    Basic EMC functionality license
N9020A-ESC     External source control license
N9020A-EXM    External mixing
N9020A-FP2     Fast Power, up to 40 MHz bandwidth
N9020A-HTC    Hard Transit Case
N9020A-KB2    US 65 Key USB Keyboard
N9020A-KYB    Keyboard, USB
N9020A-MLP    Minimum Loss Pad, 50 to 75 ohm
N9020A-MPB    Microwave preselector bypass
N9020A-NFE    Noise floor extension
N9020A-P03     Preamplifier, 3.6 GHz
N9020A-P08     Preamplifier, 8.4 GHz
N9020A-P13     Preamplifier, 13.6 GHz
N9020A-P26     Preamplifier, 26.5 GHz
N9020A-PFR     Precision frequency reference
N9020A-PRC    Portable Configuration
N9020A-RT1     Real-time analysis up to 160 MHz BW, basic detection license
N9020A-RT2     Real-time analysis up to 160 MHz BW, optimum detection license
N9020A-RTR    Real-time spectrum recorder and analyzer application example, license
N9020A-SF1     Security Features, Exclude Launching Programs
N9020A-SF2     Security features, prohibit saving results
N9020A-SSD     Additional removable solid state drive
N9020A-TDS    Time Domain Scan - requires N6141A and MPB or DP2 or B40 or greater BW
N9020A-UK6     Commercial calibration certificate with test data
N9020A-W7X    Operating system, Windows Embedded Standard 7
N9020A-YAS     Y-axis ouptut
1CM013A           Rackmount Flange Kit 177.0mm H (4U) - Two Flange Brackets
BV0005A            BenchVue Spectrum Analyzer Pro Software License
N6141A              EMI Measurement Application
N6141A-2FP     EMI measurement application, fixed perpetual license
N6141A-2TP     EMI measurement application, transportable perpetual license
N6149A             IDEN/WIDEN/MotoTalk Measurement Application
N6149A-2FP     IDEN, WIDEN, Moto Talk Measurement application, fixed perpetual license
N6149A-2TP     IDEN/WIDEN/MotoTalk measurement application, transportable perpetual license
N6152A              Digital Cable TV Measurement Application
N6152A-2FP     DVB-C/J.83 Annex A/C measurement application, fixed perpetual license
N6152A-2TP     DVB-C/J.83 Annex A/C measurement application, measurement application, transportable perpetual license
N6152A-3FP     J.83 Annex B measurement application, fixed perpetual license
N6152A-3TP     J.83 Annex B measurement application, transportable perpetual license
N6152A-MEU    Minor enhancement update, fixed perpetual license
N6153A              DVB-T/H/T2 Measurement Application
N6153A-2FP     DVB-T/H Measurement application, fixed perpetual license
N6153A-2TP     DVB-T/H measurement application, transportable perpetual license
N6153A-3FP     DVB-T2 measurement application, fixed perpetual license
N6153A-3TP     DVB-T2 measurement application, transportable perpetual license
N6155A              ISDB-T/Tmm Measurement Application
N6155A-2FP     ISDB-T Measurement Application,fixed perpetual license
N6155A-2TP     ISDB-T measurement application , transportable perpetual license
N6155A-3FP     ISDB-Tmm, Measurement Application, fixed perpetual license
N6155A-3TP     ISDB-Tmm, measurement application, transportable perpetual license
N6156A              DTMB (CTTB) Measurement Application
N6156A-2FP     DTMB (CTTB) measurement application, fixed perpetual license
N6156A-2TP     DTMB (CTTB) measurement application, transportable perpetual license
N6158A              CMMB Measurement Application
N6158A-2FP     CMMB Measurement Application,fixed perpetual license
N6158A-2TP     CMMB measurement application, transportable perpetual license
N6171A              MATLAB Software
N6171A-M01     MATLAB-Basic Package, individual license - node-locked
N6171A-M02     MATLAB-Standard Package, individual license - node-locked
N6171A-M03     MATLAB-Advanced Package, individual license - node-locked
N9051B              Pulse Measurement Software
N9051B-2FP     Pulse measurement software, fixed perpetual, license
N9051B-2TP     Pulse measurement software, fixed, transportable perpetual license
N9051B-3FP     Phase and frequency measurements, fixed perpetual license
N9051B-3TP     Phase and frequency measurements, transportable perpetual license
N9051B-4FP     Extended analysis and statistics, fixed perpetual license
N9051B-4TP     Extended analysis and statistics, transportable perpetual license
N9051B-5FP     Deep capture, fixed perpetual license
N9051B-5TP     Deep capture, transportable perpetual license
N9051B-A2B     Upgrade from N9051A to N9051B
N9061A              Remote Language Compatibility Application
N9061A-1FP     Remote language compatibility, 8566/68, fixed perpetual license
N9061A-2FP     Remote language compatibility, 856xE/EC, fixed perpetual license
N9062A             SCPI Language Compatibility
N9062A-2FP     Remote language compatibility, R-and-S FSP, fixed perpetual license
N9063A              Analog Demodulation Measurement Application
N9063A-2FP     Analog Demodulation Measurement application, fixed perpetual license
N9063A-2TP     Analog demodulation measurement application, transportable perpetual license
N9063A-3FP     FM stereo measurement application, fixed perpetual license
N9063A-3TP     FM stereo measurement applications, transportable perpetual liense
N9063A-MEU   Minor enhancement update
N9064A             VXA Vector Signal Analysis Measurement Application
N9064A-1FP     Vector signal analysis application, VXA, fixed perpetual license
N9064A-1TP     Vector signal analysis application, VXA, transportable perpetual license
N9064A-2FP     Flexible digital modulation analysis measurement application, fixed perpetual license
N9064A-2TP     Flexible digital modulation analysis measurement application, fixed transportable license
N9064A-MEU   Minor enhancement update
N9068A              Phase Noise Measurement Application
N9068A-2FP     Phase Noise Measurement application, fixed perpetual license
N9068A-2TP     Phase Noise measurement application, transportable perpetual license
N9068A-MEU    Minor enhancement update
N9069A              Noise Figure Measurement Application
N9069A-1FP     Noise figure measurement application, fixed perpetual license
N9069A-1TP     Noise figure measurement application, transportable perpetual license
N9069A-2FP     Noise figure measurement application advanced features, fixed perpetual license
N9069A-2TP     Noise figure measurement application advanced features, transportable perpetual license
N9069A-MEU    Minor enhancement update
N9071A              GSM/EDGE/Evo Measurement Application
N9071A-2FP     GSM/EDGE measurement application, fixed perpetual, license
N9071A-2TP     GSM/EDGE measurement application, transportable perpetual, license
N9071A-3FP     EDGE Evo measurement application, fixed perpetual license
N9071A-3TP     EDGE Evo measurement application, transportable perpetual license
N9071A-MEU    Minor enhancement update
N9071A-XFP     Single acquisition combined GSM/EDGE measurement application, fixed perpetual license
N9071A-XTP     GSM/EDGE combined measurement application, transportable perpetual, license
N9072A              CDMA2000 Measurement Application
N9072A-2FP     CDMA2000 measurement application, fixed perpetual license
N9072A-2TP     CDMA2000 measurement application, transportable perpetual license
N9073A              W-CDMA/HSPA+ Measurement Application
N9073A-1FP     W-CDMA Measurement application, fixed perpetual license
N9073A-1TP     W-CDMA measurement application, fixed transportable perpetual license
N9073A-2FP     HSDPA/HSUPA measurement application, fixed perpetual license
N9073A-2TP     HSDPA/HSUPA measurement application, transportable perpetual license
N9073A-3FP     HSPA+ Measurement Application, fixed perpetual license
N9073A-3TP     HSPA+ measurement application, transportable perpetual license
N9073A-MEU   Minor enhancement update
N9073A-XFP     Single acquisition combined W-CDMA measurement application, fixed perpetual license
N9073A-XTP     Single acquisition combined W-CDMA measurement application, transportable perpetual license
N9074A              Fixed WiMAX Single Acquisition Combined Measurement Application
N9074A-XFP     Single acquisition combined WiMAX measurement application, fixed perpetual, license
N9074A-XTP     Single acquisition combined WiMAX measurement application, fixed perpetual license
N9075A              Mobile WiMAX Measurement Application
N9075A-2FP     Mobile WiMAX measurement application, fixed perpetual, license
N9075A-2TP     Mobile WiMAX measurement application, transportable perpetual, license
N9076A              1xEV-DO Measurement Application
N9076A-1FP     1xEV-DO measurement application, fixed perpetual license
N9076A-1TP     1xEV-DO measurement application, transportable perpetual license
N9077A              WLAN 802.11a/b/g/n/ac Measurement Application
N9077A-2FP     WLAN 802.11a/b/g measurement application, fixed perpetual license
N9077A-2TP     WLAN 802.11a/b/g measurement application, transportable perpetual license
N9077A-3FP     WLAN 802.11n measurement application, fixed perpetual license
N9077A-3TP     WLAN 802.11n, measurement application, transportable perpetual license
N9077A-4FP     WLAN 802.11ac measurement application, fixed perpetual license
N9077A-4TP     WLAN 802.11ac measurement application, transportable perpetual license
N9077A-5FP     WLAN 802.11 list sequence measurement application, fixed perpetual license
N9077A-5TP     WLAN 802.11 list sequence measurement application, transportable perpetual license
N9077A-6FP     WLAN 802.11ah measurement application, fixed perpetual license
N9077A-6TP     WLAN 802.11ah measurement application, transportable perpetual license
N9079A              TD-SCDMA/HSPA Measurement Application
N9079A-1FP     TD-SCDMA measurement application, fixed perpetual license
N9079A-1TP     TD-SCDMA measurement application, transportable perpetual license
N9079A-2FP     HSPA measurement application, fixed perpetual license
N9079A-2TP     HSPA measurement application, transportable perpetual license
N9079A-MEU    Minor enhancement update
N9080B              LTE/LTE-Advanced FDD measurement application
N9080B-1FP     LTE FDD measurement application, fixed perpetual license
N9080B-1TP     LTE FDD measurement application, transportable perpetual license
N9080B-2FP     LTE-Advanced FDD measurement application, fixed perpetual license
N9080B-2TP     LTE-Advanced FDD measurement application, transportable perpetual license
N9081A              Bluetooth Measurement Application
N9081A-2FP     Bluetooth Measurement Application, fixed perpetual license
N9081A-2TP     Bluetooth measurement application, transportable perpetual license
N9081A-MEU    Minor enhancement update
N9082B              LTE/LTE-Advanced TDD measurement application
N9082B-1FP     LTE TDD measurement application, fixed perpetual license
N9082B-1TP     LTE TDD measurement application, transportable perpetual license
N9082B-2FP     LTE-Advanced TDD measurement application, fixed perpetual license
N9082B-2TP     LTE-Advanced TDD measurement application, transportable perpetual license
N9083A              Multi-Standard Radio (MSR) Measurement Application
N9083A-1FP     Multi-Standard Radio, MSR, measurement application, fixed perpetual license
N9083A-1TP     Multi-Standard Radio, MSR, measurement application, transportable perpetual license


Agilent N9020A -01Agilent N9020A -02Agilent N9020A -03Agilent N9020A -04Agilent N9020A -05

苏州优品电子有限公司 电子测试测量仪表一站式服务商
86-512-68050516 手机:18914031336
Email:18914031336@youpinelectronic.com
官方微信
苏州优品电子有限公司  地址:苏州市高新区滨河路625号创业大厦3幢501室
© 2015-2019 苏州优品电子有限公司  苏ICP备15048037号-1
