针对制造测试进行了优化，可以实现更快的吞吐量、更长的正常运行时间，以更经济高效的性能
出色的 ACPR、EVM 和输出功率使其可以执行元器件基本参数测试和接收机功能验证
Signal Studio 软件可以缩短信号生成的时间；许可证分为 5 种波形一组和 50 种波形一组，您可以仅购买所需的波形
自我维护策略和低成本维修可最大限度降低停机时间和费用
 |
loading

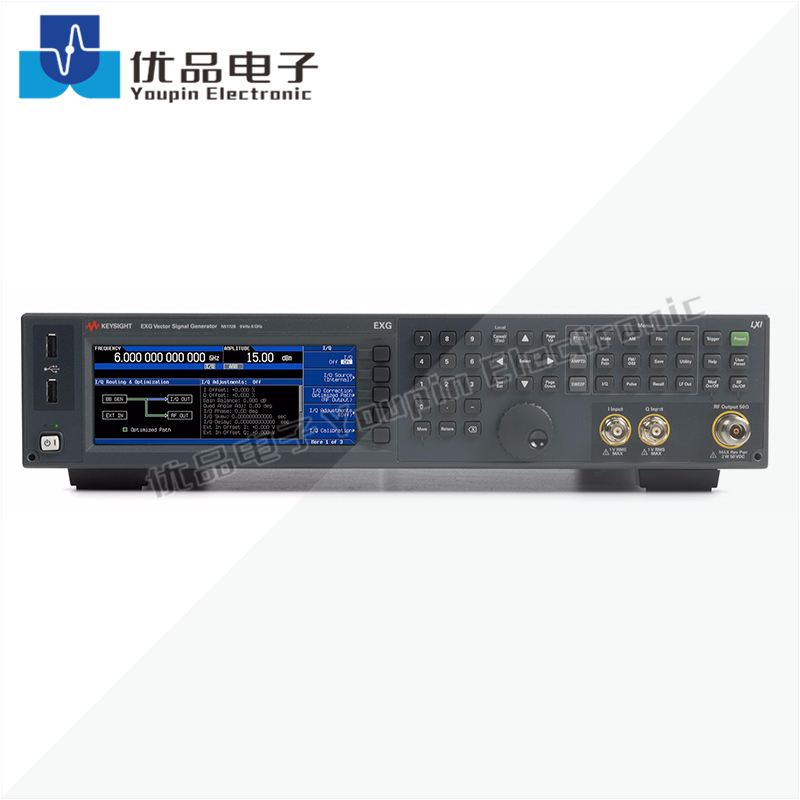

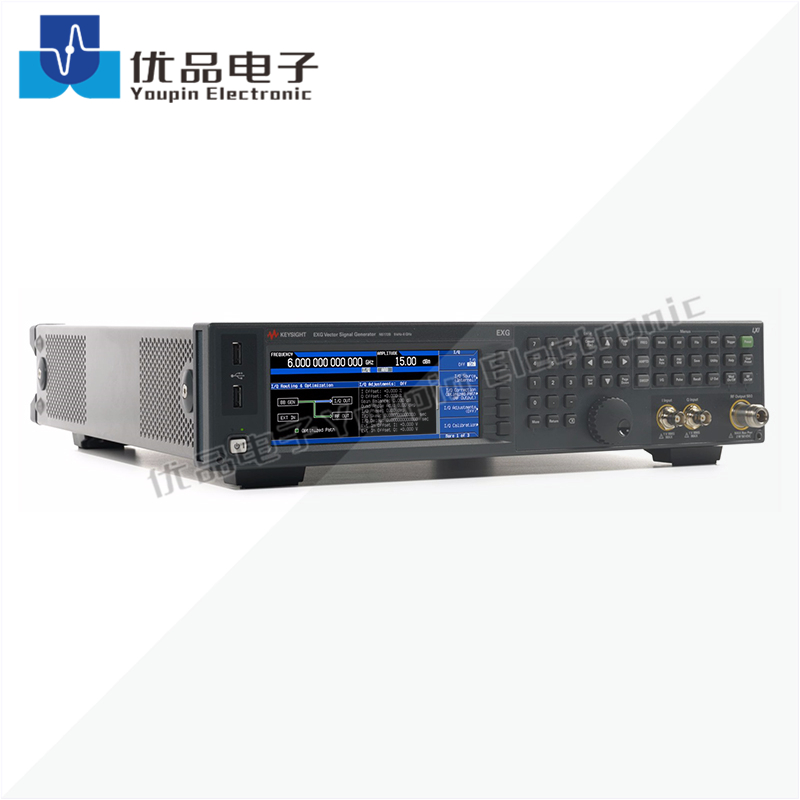

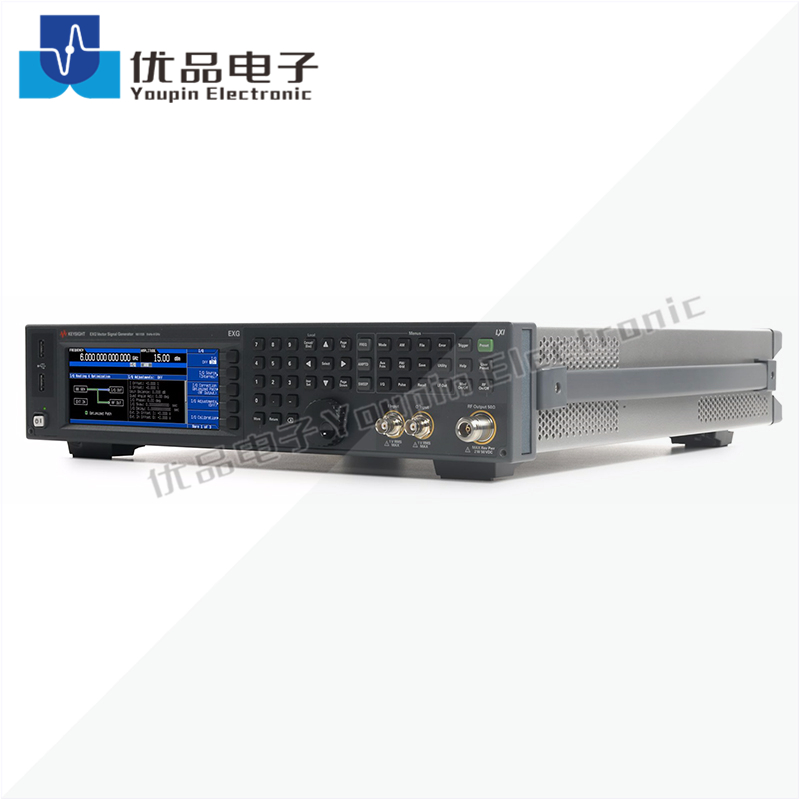

N5172B
Keysight是德科技
0512-68050516
18914031336
1931048209
可销售 可租赁 可维修 可回收
| 状态： | |
|---|---|
产品特点
1、减少干扰、加速数据传输速率，并提升信号质量
2、生成具有出色 EVM 的测试信号
3、节省射频功率放大器在非线性范围内测量其 ACPR 和 EVM 的时间
4、集七个函数发生器于一体，可同时运作以测试雷达或警用无线电
5、利用 MXG 和 EXG 的相位噪声性能，创造更快、更好的设计
6、通过对您的X 系列信号发生器执行自维护，降低您的拥有成本
主要特性和功能
针对制造测试进行了优化，可以实现更快的吞吐量、更长的正常运行时间，以更经济高效的性能
出色的 ACPR、EVM 和输出功率使其可以执行元器件基本参数测试和接收机功能验证
Signal Studio 软件可以缩短信号生成的时间；许可证分为 5 种波形一组和 50 种波形一组，您可以仅购买所需的波形
自我维护策略和低成本维修可最大限度降低停机时间和费用
产品特点
1、减少干扰、加速数据传输速率，并提升信号质量
2、生成具有出色 EVM 的测试信号
3、节省射频功率放大器在非线性范围内测量其 ACPR 和 EVM 的时间
4、集七个函数发生器于一体，可同时运作以测试雷达或警用无线电
5、利用 MXG 和 EXG 的相位噪声性能，创造更快、更好的设计
6、通过对您的X 系列信号发生器执行自维护，降低您的拥有成本
主要特性和功能
针对制造测试进行了优化，可以实现更快的吞吐量、更长的正常运行时间，以更经济高效的性能
出色的 ACPR、EVM 和输出功率使其可以执行元器件基本参数测试和接收机功能验证
Signal Studio 软件可以缩短信号生成的时间；许可证分为 5 种波形一组和 50 种波形一组，您可以仅购买所需的波形
自我维护策略和低成本维修可最大限度降低停机时间和费用
| 性能水平 | ◆◆◆◇◇◇ |
|---|---|
| 1 GHz 时的输出功率 | -144 dBm 至 +26 dBm |
| 1 GHz 时，20 kHz 频偏处的相位噪声 | -122 dBc/Hz |
| 频率转换 | ≤ 800 µs |
| 1 GHz 时的谐波 | <-35 dBc |
| IQ 内部/外部调制带宽 | 120 MHz 至 200 MHz |
| 1 GHz 时的非谐波 | -72 dBc |
| 扫描模式 |
|
| 基带发生器模式 | Waveform Playback and Real-Time |
| 软件——通用 |
|
| 软件——蜂窝/无线连通性 |
|
| 软件——音频/视频广播 |
|
| 软件——检测/定位/跟踪/导航 |
|
| 波形回放存储器 | 512 Msa |
| 1 GHz 时的频率调制最大偏移 | 10 MHz |
| 100 kHz 频偏时的频率调制率 | DC to 7 MHz |
| 普通模式下的相位调制最大偏移 | 1.25 rad 至 20 rad |
| 高带宽模式下的相位调制最大偏移 | 0.125 rad 至 2 rad |
| 幅度调制最大深度 | 100% |
| 幅度调制率 | 0 to 50 kHz |
| 可用应用 | 是 |
| 矢量 | 是 |
| 性能水平 | ◆◆◆◇◇◇ |
|---|---|
| 1 GHz 时的输出功率 | -144 dBm 至 +26 dBm |
| 1 GHz 时，20 kHz 频偏处的相位噪声 | -122 dBc/Hz |
| 频率转换 | ≤ 800 µs |
| 1 GHz 时的谐波 | <-35 dBc |
| IQ 内部/外部调制带宽 | 120 MHz 至 200 MHz |
| 1 GHz 时的非谐波 | -72 dBc |
| 扫描模式 |
|
| 基带发生器模式 | Waveform Playback and Real-Time |
| 软件——通用 |
|
| 软件——蜂窝/无线连通性 |
|
| 软件——音频/视频广播 |
|
| 软件——检测/定位/跟踪/导航 |
|
| 波形回放存储器 | 512 Msa |
| 1 GHz 时的频率调制最大偏移 | 10 MHz |
| 100 kHz 频偏时的频率调制率 | DC to 7 MHz |
| 普通模式下的相位调制最大偏移 | 1.25 rad 至 20 rad |
| 高带宽模式下的相位调制最大偏移 | 0.125 rad 至 2 rad |
| 幅度调制最大深度 | 100% |
| 幅度调制率 | 0 to 50 kHz |
| 可用应用 | 是 |
| 矢量 | 是 |
| Frequency Range | |||
| N5172B-503 | 9 kHz 至 3 GHz 频率范围 | ||
| N5172B-506 | 9 kHz 至 6 GHz 频率范围 | ||
| Connector Configuration | |||
| N5172B-1EM | 将所有连接器移至后面板 | ||
| General Performance Features | |||
| N5172B-UNZ | 快速切换 | ||
| N5172B-1EA | 大输出功率 | ||
| N5172B-1ER | 灵活的参考输入（1 ～ 50 MHz） | ||
| N5172B-302 | Avionics License | ||
| N5172B-099 | 期限延长的许可证密匙升级能力 | ||
| Vector Systems Features | |||
| N5172B-660 | 升级基带信号发生器，增加实时能力 | ||
| N5172B-655 | 基带信号发生器的射频带宽从 60 MHz 升级至 120 MHz | ||
| N5172B-653 | ARB 基带信号发生器（60 MHz 射频带宽，32 Msa） | ||
| N5172B-1EL | 差分 I/Q 输出 | ||
| N5172B-022 | Upgrade baseband generator memory from 32 Msa to 512 Msa | ||
| N5172B-021 | Upgrade baseband generator memory from 32 Msa to 256 Msa | ||
| N5172B-UNV | 增强的动态范围 | ||
| N5172B-UN7 | 内置比特误码率分析仪，固定永久许可证 | ||
| N5172B-657 | Upgrade baseband generator to 160 MHz RF bandwidth | ||
| Analog Modulation | |||
| N5172B-UNW | 窄脉冲调制 | ||
| N5172B-UNT | 调幅、调频、相位调制 | ||
| N5172B-320 | 脉冲序列发生器，固定永久许可证 | ||
| N5172B-303 | 多功能函数发生器 | ||
| Additional Features | |||
| N5172B-006 | 仪器安全特性和可拆卸存储卡 | ||
| N5172B-012 | 用于相位相干的 LO 输入/输出 | ||
| N5172B-009 | Internal solid state memory | ||
| Calibration Documentation | |||
| N5172B-UK6 | Commercial calibration certificate with test data | ||
| N5172B-A6J | ANSI Z540-1-1994 校准 | ||
| N5172B-AMG | 校准 + 不确定度 + 保护频段（认证） | ||
| Vector Firmware Applications | |||
| N5172B-430 | 多音频和双音频 | ||
| N5172B-403 | 经过校准的 AWGN | ||
| N5172B-004 | 数字输入端口可与 N5102A 连接 | ||
| N5172B-003 | 数字输出端口可与 N5102A 连接 | ||
| N5172B-432 | 相位噪声减损 | ||
| N5172B-431 | 定制设计调制 | ||
| Waveform 5-pack Licenses | |||
| N5172B-229 | Waveform license 5-pack9 | ||
| N5172B-228 | Waveform license 5-pack8 | ||
| N5172B-227 | Waveform license 5-pack7 | ||
| N5172B-226 | Waveform license 5-pack6 | ||
| N5172B-225 | Waveform license 5-pack5 | ||
| N5172B-224 | Waveform license 5-pack4 | ||
| N5172B-223 | Waveform license 5-pack3 | ||
| N5172B-222 | Waveform license 5-pack2 | ||
| N5172B-221 | 5 种波形一组的波形许可证 | ||
| Waveform 50-pack Licenses | |||
| N5172B-259 | Waveform license 50-pack10 | ||
| N5172B-258 | Waveform license 50-pack9 | ||
| N5172B-257 | Waveform license 50-pack8 | ||
| N5172B-256 | Waveform license 50-pack7 | ||
| N5172B-255 | Waveform license 50-pack6 | ||
| N5172B-254 | Waveform license 50-pack5 | ||
| N5172B-253 | Waveform license 50-pack4 | ||
| N5172B-252 | Waveform license 50-pack3 | ||
| N5172B-251 | Waveform license 50-pack2 | ||
| N5172B-250 | 50 种波形一组的波形许可证 | ||
| Accessories | |||
| N5172B-AXT | Hard transit case | ||
| 1CM110A | Rack mount flange kit 88.1mm H (2U) - two flange brackets, four hole plugs, Palette 2015 | ||
| 1CN106A | Handle kit 88.1mm H (2U) - two front handles, Palette 2015 | ||
| 1CP104A | Rack mount flange and handle kit 88.1mm H (2U) - brackets, handles, hole plugs, Palette 2015 | ||
| 1CR112A | Rack Slide Kit, Mounting lengths 279.4-406.4mm, Palette 2015 | ||
| 1CM010A | Rackmount Flange Kit 88.1mm H (2U) - Two Flange Brackets, Four Hole Plugs | ||
| 1CN006A | 把手套件 88.1 毫米（高）（2U）－－两个前把手 | ||
| 1CP004A | Rackmount Flange and Handle Kit 88.1mm H (2U) - Brackets, Handles, Hole Plugs | ||
| 1CR012A | Rack Slide Kit, Mounting lengths 279.4-406.4mm | ||
| N5172B-CVR | Front panel cover | ||
| Documentation | |||
| N5172B-ABJ | Japan - Japanese printed users guide | ||
| Signal Creation Software | |||
| N7625B | Signal Studio for LTE / LTE-Advanced TDD 信号生成软件 | ||
| N7624B | Signal Studio for LTE / LTE-Advanced / LTE-Advanced Pro FDD 信号生成软件 | ||
| N7623B | Signal Studio for Digital Video | ||
| N7617B | 适用于 WLAN 802.11a/b/g/j/p/n/ac/ah 的 Signal Studio 软件 | ||
| N7615B | Signal Studio for Mobile WiMAX | ||
| N7612B | Signal Studio for TD-SCDMA/HSPA | ||
| N7611B | Signal Studio for Broadcast Radio | ||
| N7609B | Signal Studio for Global Navigation Satellite Systems (GNSS) | ||
| N7606B | Signal Studio for Bluetooth | ||
| N7602B | Signal Studio for GSM/EDGE/Evo | ||
| N7601B | Signal Studio for cdma2000/1xEV-DO | ||
| N7600B | Signal Studio for W-CDMA/HSPA+ | ||
| N6171A | MATLAB 软件 | ||
| N7620B | Signal Studio for Pulse Building | ||
| N7621B | Signal Studio for Multitone Distortion | ||
| N7607B | Signal Studio for DFS Radar Profiles | ||
| N7610B | Signal Studio for Short Range Communications | ||
| N7614B | Signal Studio 功率放大器测试软件 | ||
| N7605B | Signal Studio for Real-Time Fading | ||
| N7608B | Signal Studio 定制调制软件 | ||
| E8900-D10 | USB read-only licensing dongle - FLEX10 | ||
| Frequency Range | |||
| N5172B-503 | 9 kHz 至 3 GHz 频率范围 | ||
| N5172B-506 | 9 kHz 至 6 GHz 频率范围 | ||
| Connector Configuration | |||
| N5172B-1EM | 将所有连接器移至后面板 | ||
| General Performance Features | |||
| N5172B-UNZ | 快速切换 | ||
| N5172B-1EA | 大输出功率 | ||
| N5172B-1ER | 灵活的参考输入（1 ～ 50 MHz） | ||
| N5172B-302 | Avionics License | ||
| N5172B-099 | 期限延长的许可证密匙升级能力 | ||
| Vector Systems Features | |||
| N5172B-660 | 升级基带信号发生器，增加实时能力 | ||
| N5172B-655 | 基带信号发生器的射频带宽从 60 MHz 升级至 120 MHz | ||
| N5172B-653 | ARB 基带信号发生器（60 MHz 射频带宽，32 Msa） | ||
| N5172B-1EL | 差分 I/Q 输出 | ||
| N5172B-022 | Upgrade baseband generator memory from 32 Msa to 512 Msa | ||
| N5172B-021 | Upgrade baseband generator memory from 32 Msa to 256 Msa | ||
| N5172B-UNV | 增强的动态范围 | ||
| N5172B-UN7 | 内置比特误码率分析仪，固定永久许可证 | ||
| N5172B-657 | Upgrade baseband generator to 160 MHz RF bandwidth | ||
| Analog Modulation | |||
| N5172B-UNW | 窄脉冲调制 | ||
| N5172B-UNT | 调幅、调频、相位调制 | ||
| N5172B-320 | 脉冲序列发生器，固定永久许可证 | ||
| N5172B-303 | 多功能函数发生器 | ||
| Additional Features | |||
| N5172B-006 | 仪器安全特性和可拆卸存储卡 | ||
| N5172B-012 | 用于相位相干的 LO 输入/输出 | ||
| N5172B-009 | Internal solid state memory | ||
| Calibration Documentation | |||
| N5172B-UK6 | Commercial calibration certificate with test data | ||
| N5172B-A6J | ANSI Z540-1-1994 校准 | ||
| N5172B-AMG | 校准 + 不确定度 + 保护频段（认证） | ||
| Vector Firmware Applications | |||
| N5172B-430 | 多音频和双音频 | ||
| N5172B-403 | 经过校准的 AWGN | ||
| N5172B-004 | 数字输入端口可与 N5102A 连接 | ||
| N5172B-003 | 数字输出端口可与 N5102A 连接 | ||
| N5172B-432 | 相位噪声减损 | ||
| N5172B-431 | 定制设计调制 | ||
| Waveform 5-pack Licenses | |||
| N5172B-229 | Waveform license 5-pack9 | ||
| N5172B-228 | Waveform license 5-pack8 | ||
| N5172B-227 | Waveform license 5-pack7 | ||
| N5172B-226 | Waveform license 5-pack6 | ||
| N5172B-225 | Waveform license 5-pack5 | ||
| N5172B-224 | Waveform license 5-pack4 | ||
| N5172B-223 | Waveform license 5-pack3 | ||
| N5172B-222 | Waveform license 5-pack2 | ||
| N5172B-221 | 5 种波形一组的波形许可证 | ||
| Waveform 50-pack Licenses | |||
| N5172B-259 | Waveform license 50-pack10 | ||
| N5172B-258 | Waveform license 50-pack9 | ||
| N5172B-257 | Waveform license 50-pack8 | ||
| N5172B-256 | Waveform license 50-pack7 | ||
| N5172B-255 | Waveform license 50-pack6 | ||
| N5172B-254 | Waveform license 50-pack5 | ||
| N5172B-253 | Waveform license 50-pack4 | ||
| N5172B-252 | Waveform license 50-pack3 | ||
| N5172B-251 | Waveform license 50-pack2 | ||
| N5172B-250 | 50 种波形一组的波形许可证 | ||
| Accessories | |||
| N5172B-AXT | Hard transit case | ||
| 1CM110A | Rack mount flange kit 88.1mm H (2U) - two flange brackets, four hole plugs, Palette 2015 | ||
| 1CN106A | Handle kit 88.1mm H (2U) - two front handles, Palette 2015 | ||
| 1CP104A | Rack mount flange and handle kit 88.1mm H (2U) - brackets, handles, hole plugs, Palette 2015 | ||
| 1CR112A | Rack Slide Kit, Mounting lengths 279.4-406.4mm, Palette 2015 | ||
| 1CM010A | Rackmount Flange Kit 88.1mm H (2U) - Two Flange Brackets, Four Hole Plugs | ||
| 1CN006A | 把手套件 88.1 毫米（高）（2U）－－两个前把手 | ||
| 1CP004A | Rackmount Flange and Handle Kit 88.1mm H (2U) - Brackets, Handles, Hole Plugs | ||
| 1CR012A | Rack Slide Kit, Mounting lengths 279.4-406.4mm | ||
| N5172B-CVR | Front panel cover | ||
| Documentation | |||
| N5172B-ABJ | Japan - Japanese printed users guide | ||
| Signal Creation Software | |||
| N7625B | Signal Studio for LTE / LTE-Advanced TDD 信号生成软件 | ||
| N7624B | Signal Studio for LTE / LTE-Advanced / LTE-Advanced Pro FDD 信号生成软件 | ||
| N7623B | Signal Studio for Digital Video | ||
| N7617B | 适用于 WLAN 802.11a/b/g/j/p/n/ac/ah 的 Signal Studio 软件 | ||
| N7615B | Signal Studio for Mobile WiMAX | ||
| N7612B | Signal Studio for TD-SCDMA/HSPA | ||
| N7611B | Signal Studio for Broadcast Radio | ||
| N7609B | Signal Studio for Global Navigation Satellite Systems (GNSS) | ||
| N7606B | Signal Studio for Bluetooth | ||
| N7602B | Signal Studio for GSM/EDGE/Evo | ||
| N7601B | Signal Studio for cdma2000/1xEV-DO | ||
| N7600B | Signal Studio for W-CDMA/HSPA+ | ||
| N6171A | MATLAB 软件 | ||
| N7620B | Signal Studio for Pulse Building | ||
| N7621B | Signal Studio for Multitone Distortion | ||
| N7607B | Signal Studio for DFS Radar Profiles | ||
| N7610B | Signal Studio for Short Range Communications | ||
| N7614B | Signal Studio 功率放大器测试软件 | ||
| N7605B | Signal Studio for Real-Time Fading | ||
| N7608B | Signal Studio 定制调制软件 | ||
| E8900-D10 | USB read-only licensing dongle - FLEX10 | ||
