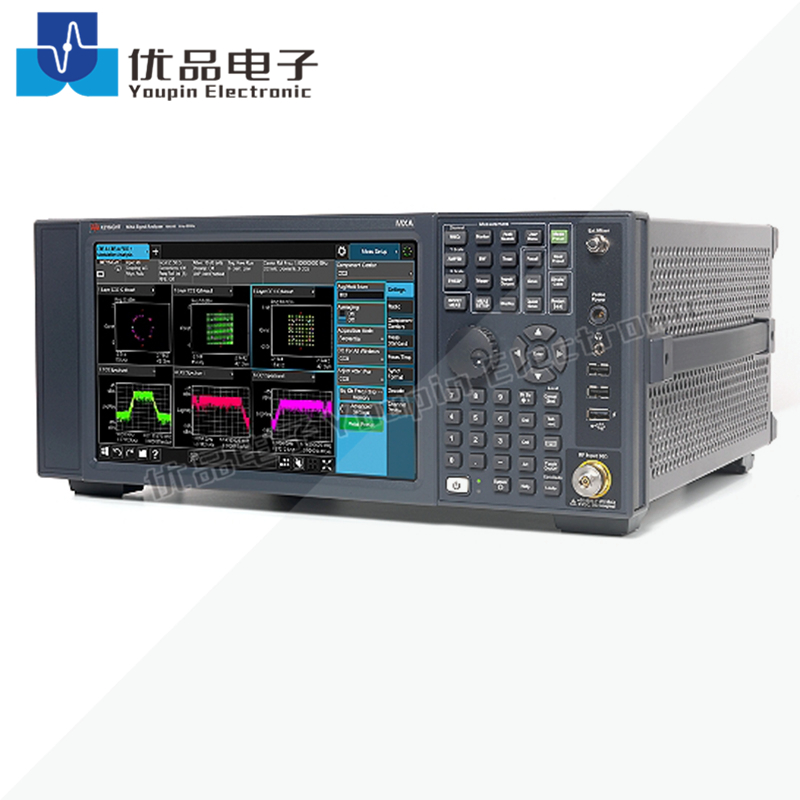

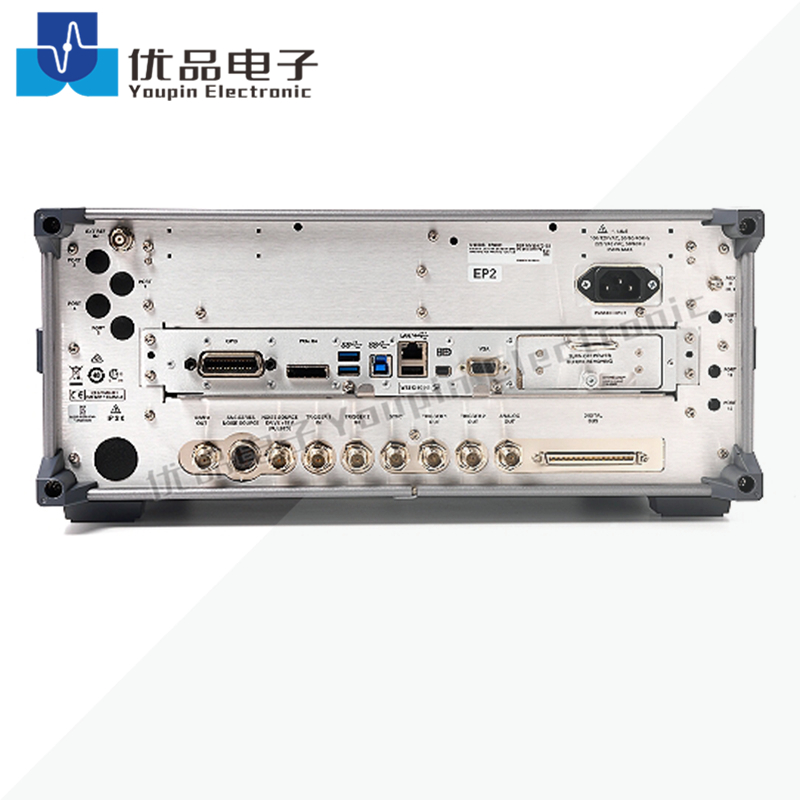

Keysight是德科技 N9020B频谱分析仪

是德科技
MXA X 系列信号分析仪,多点触控 N9020B
10 Hz 至 3.6、8.4、13.6 或 26.5 GHz

  • N9020B
  • Keysight是德科技
  • 0512-68050516
  • 18914031336
  • 1931048209
  • 可销售  可租赁  可维修  可回收
  • 快速适应无线器件不断演进的测试要求

  • 通过硬件加速功率测量缩短测试时间,显示更新速率快,并且具有游标峰值搜索和快速扫描功能

  • X 系列应用软件提供一键式测量,显著简化测试

  • 全频段实时频谱分析能够捕获偶发或瞬态信号


频率10 Hz 至 50 GHz
频率选件3.6, 8.4, 13.6, 26.5, 32, 44, 50 GHz
最大分析带宽160 MHz
带宽选件25 MHz 标配,40、85、125、160 MHz
最大实时带宽160 MHz
实时带宽选件85, 125, 160 MHz
1 GHz 时的 DANL-172 dBm
1 GHz 时,10 kHz 频偏处的相位噪声-114 dBc/Hz
1 GHz 时,30 kHz 频偏处的相位噪声-114 dBc/Hz
1 GHz 时,1 MHz 频偏处的相位噪声-136 dBc/Hz
总体幅度精度±0.23 dB
三阶截获(TOI),1 GHz 时+20 dBm
应用——通用
  • 89600 VSA 软件

  • 模拟解调

  • 噪声系数

  • 相位噪声

  • 脉冲

  • 实时频谱分析

  • EMI

  • MATLAB

  • Vector Modulation Analysis

应用——蜂窝
  • GSM/EDGE

  • LTE/LTE-Advanced

  • NB-IoT

  • W-CDMA/HSPA/HSPA+

应用——无线连通性
  • Bluetooth® (BR/EDR/LE4.2/5.0)

  • Short Range Communications (ZigBee, Z-Wave)

  • WLAN 802.11(a/b/g/j/p/n/ac/af/ah/ax)

应用——数字视频
性能水平◆◆◆◆◇◇
标准衰减器衰减范围70 dB
标准衰减器步进2 dB
100% 截获概率的最短信号持续时间3.57 µs
信掩比 > 60 dB 时的可检测信号持续时间5 ns
无杂散动态范围72 dBc
显示视图
  • 密度

  • 频谱图

  • 密度频谱图

  • PvT(功率随时间的变化)频谱

  • PvT(功率随时间的变化)

触发
  • FMT(频率模板触发)

  • TQT(时间限定触发)

  • 电平

  • 射频猝发

  • 线路

  • 外置

  • 周期

使用频率模板触发的应用软件
  • 89600 VSA 软件

  • 实时频谱分析仪

  • Pulse Measurement Application

2 GHz 时的 DANL,不配备前置放大器-154 dBm/Hz
10 GHz 时的 DANL,不配备前置放大器-151 dBm/Hz
可用应用 是

选件和升级

选件

了解详细信息: 查看配置指南

Frequency range
N9020B-503
N9020B-508
N9020B-513
N9020B-526
N9020B-532
N9020B-544
N9020B-550




Preamplifier
N9020B-P03
N9020B-P08
N9020B-P13
N9020B-P26
N9020B-P32
N9020B-P44
N9020B-P50




Bandwidth
N9020B-B1A
N9020B-B1X
N9020B-B40
N9020B-B85




Performance Options
N9020B-FT2
N9020B-MPB
N9020B-NF2
N9020B-PFR
N9020B-TDS
N9020B-DP2
N9020B-EA3
N9020B-EDP
N9020B-EMC
N9020B-FP2
N9020B-FT1
N9020B-RBE




Baseband Inputs
N9020B-BBA




Calibration Options
N9020B-AMG
N9020B-A6J
N9020B-UK6




Connection Options
N9020B-CR3
N9020B-CRP
N9020B-YAS




External Mixing
N9020B-EXM




Real time signal analysis
N9020B-RT1
N9020B-RT2




Portable Packaging
N9020B-PRC




Security - PC features
N9020B-SF2
N9020B-SSD
N9020B-SF1
N9020B-SS1Additional removable solid state drive, Win10





Source Connectivity
N9020B-ESC




Application software
89601B
N6171A
N9063C
N9068C
N9069C
N9071C
N9073C
N9077C
N9080C
N9082C
N9081C
N9084C
N9067C
N6141C
N9054C
N9061C
N9062C




Real Time Recorder
N9020B-RTR




Accessories
1CM113ARack mount flange kit 177.0mm H (4U) - two flange brackets, 2015 color

1CN103AHandle kit 177.0mm H (4U) - two front handles, 2015 color

1CP105ARack mount flange and handle kit 177.0mm H (4U) - two brackets and front handles

1DVR001AROM/CD-R/RW drive

1KBD001AUSB keyboard-smaller keyboard

1MSE001AMouse

MLP001AMinimum loss pad, 50 to 75 ohm

1CR013ARack Slide Kit for 11in, 14in, and 16in Mounting Holes





Additional Documentation
N9020B-AB1Korean localization, user interface and getting started guide

N9020B-AB2Chinese localization, user interface and getting started guide

N9020B-ABESpanish localization, user interface and getting started guide

N9020B-ABFFrench localization, user interface and getting started guide

N9020B-ABJJapanese localization, user interface and getting started guide

N9020B-AKTRussian localization, user interface and getting started guide





资源中心

查看全部资料: 访问文档库

支持文档

探讨此产品如何应对特定的测量挑战。

Overcoming Interference is Critical to Success in a Wireless IoT World - White Paper
This white paper highlights the importance of co-existence testing and step-by-step guide on how it can be done in the lab.
Overcoming LTE/LTE-A RF Test Challenges - Application Note
This application note covers test implications for recent LTE-A updates. Proposes solutions using the multi-touch MXA X-Series Signal Analyzer and LTE/LTE-A X-Series measurement applications.
Characterization of LTE Devices Made Simple - Application Brief
This application brief describes ways to easily characterize LTE-Advanced devices with the multi-touch MXA X-Series Signal Analyzer
Discover How the Intuitive Multi-touch UI Streamlines Complex Measurements
Six application briefs demonstrate the latest techniques using X-Series signal analyzers with multi-touch
LoRaWAN Test Challenges - Application Brief
A summary of the challenges in LoRaWAN testing, along with hardware and software solutions.
