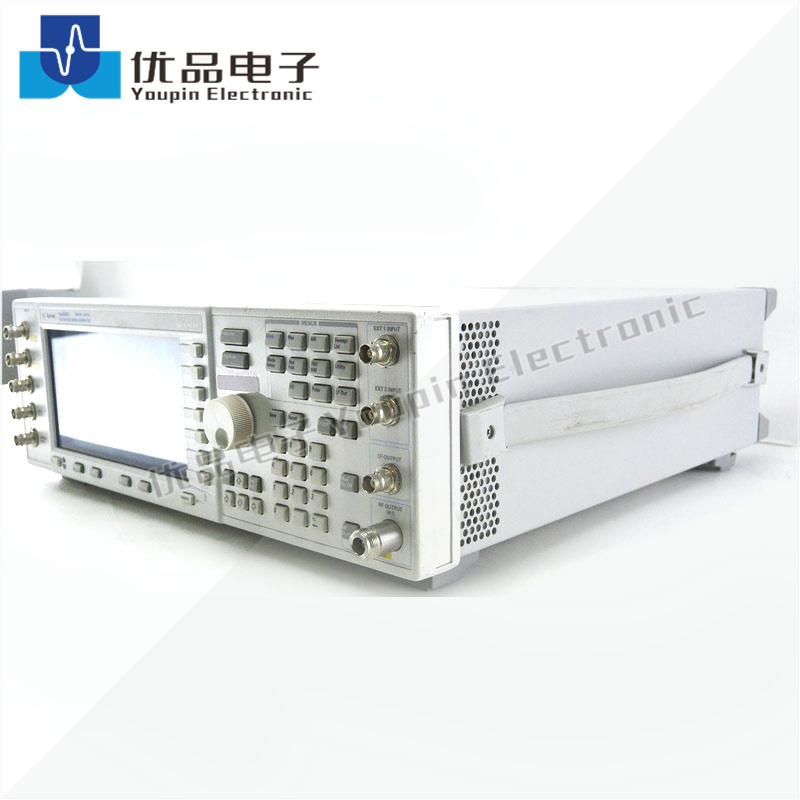

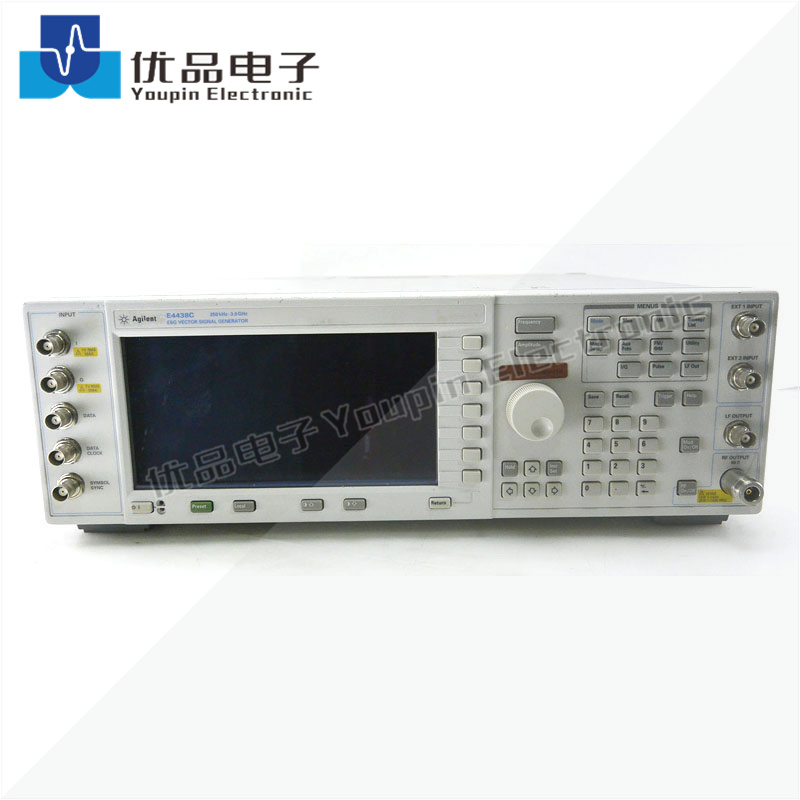

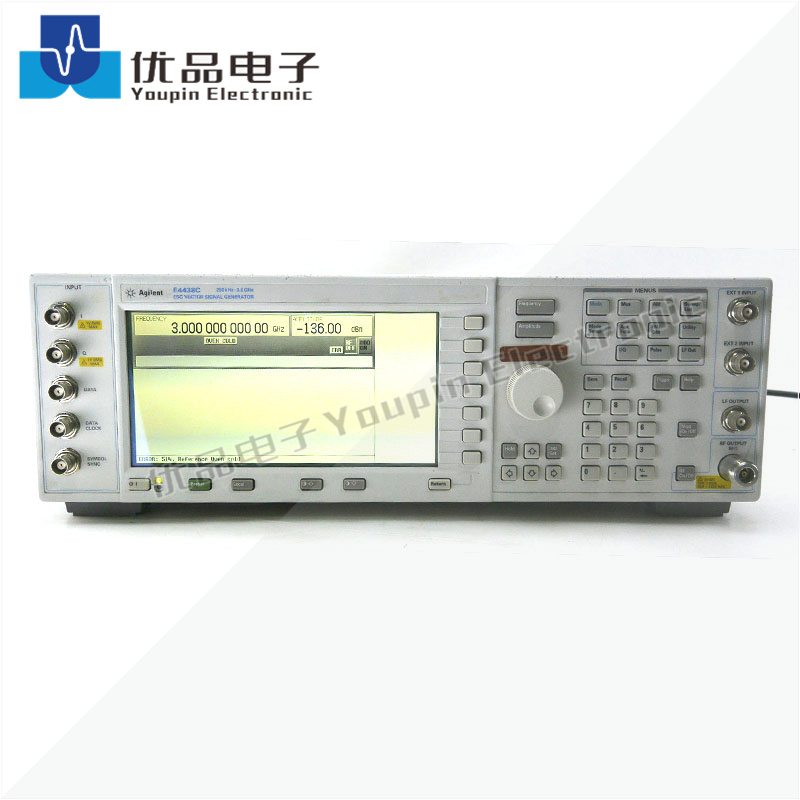

Agilent安捷伦E4438C ESG矢量信号发生器

可替代产品:N5182B 射频矢量信号发生器

  • E4438C
  • Agilent安捷伦
  • 0512-68050516
  • 18914031336
  • 1931048209
  • 可销售  可租赁  可维修  可回收



射频性能和领先的基带生成


E4438C ESG 矢量信号发生器将优异的射频性能与完美的基带信号生成能力相结合,能够在基带、中频和高达 6 GHz 射频频率上提供已校准的测试信号。由于采用了具备任意波形和实时 I/Q 能力的内置基带发生器、大量波形回放和存储器以及宽射频调制带宽,E4438C ESG 可用来测试当前的复杂无线系统及其器件。

采用模块化架构,满足您的测试要求

E4438C ESG 是一种具有极强适应能力和多种可选功能的平台,它支持您针对各种基带和射频测试应用进行仪器定制,包括简单的失真测试、常见故障诊断、基带编码算法开发、先进的收发信机设计验证以及大规模制造。借助其模块化架构,它还能根据您当前所需的性能水平和信号生成能力轻松地完成仪器配置,并通过选件在未来进行升级。




信号特征
250 kHz 123.4 6 GHz
+17 dBm 输出功率
1 GHz 20 kHz 偏置时,相位噪声小于 -134 dBc(典型值)

调制和扫描
AMFMØM 和脉冲
ASKFSKMSKPSKQAM 、定制 I/Q
频率和功率的步进扫描或列表扫描

基带生成和信号生成
80 MHz 双模内置基带发生器:任意波形和实时 I/Q 信号
64Msa 回放存储器和 1 Gsa 存储器
生成参考信号:LTEHSPA+WiMAX™、WLANDVB-HGPS/GNSSMATLAB - Signal Studio
使用 N5102A 的数字 I/OMIMO 衰落和射频至射频衰落以及PXB 基带发生器和通道仿真器完成多通道基带生成

自动和通信接口
10BaseT LAN GPIB
SCPI IVI-COM 驱动程序
向后兼容 ESGPSG 8648 信号发生器




E4438C-003     Enables ESG digital output connectivity with N5102A
E4438C-004     Enables ESG digital input connectivity with N5102A
E4438C-005     Hard Drive 6 Gbyte
E4438C-1CM   Rack mount without handle
E4438C-1CN    Handle kit
E4438C-1CP     Rackmount kit with front handles
E4438C-1E5     High-stability time-base
E4438C-1EM    Moves all front panel connectors to rear panel
E4438C-221     Waveform license 5-pack1
E4438C-222     Waveform license 5-pack2
E4438C-223     Waveform license 5-pack3
E4438C-224     Waveform license 5-pack4
E4438C-225     Waveform license 5-pack5
E4438C-226     Waveform license 5-pack6
E4438C-227     Waveform license 5-pack7
E4438C-228     Waveform license 5-pack8
E4438C-229     Waveform license 5-pack9
E4438C-250     Waveform license 50-pack1
E4438C-251     Waveform license 50-pack2
E4438C-252     Waveform license 50-pack3
E4438C-253     Waveform license 50-pack4
E4438C-254     Waveform license 50-pack5
E4438C-255     Waveform license 50-pack6
E4438C-256     Waveform license 50-pack7
E4438C-257     Waveform license 50-pack8
E4438C-258     Waveform license 50-pack9
E4438C-259     Waveform license 50-pack10
E4438C-400     W-CDMA FDD personality, fixed perpetual license
E4438C-401     CDMA 2000 and IS-95-A personalities, fixed perpetual license
E4438C-402     TDMA personalities (GSM, EDGE, NADC, PDC, PHS, DECT, TETRA), fixed perpetual license
E4438C-403     Calibrated noise personality, fixed perpetual license
E4438C-409     GPS personality, fixed perpetual license
E4438C-419     Signal Studio for 3GPP W-CDMA HSPA Rel 6, fixed perpetual license
E4438C-423     Scenario generator for MS-GPS, fixed perpetual license
E4438C-501     Frequency Range, 250kHz to 1 GHz
E4438C-502     Frequency Range, 250kHz to 2 GHz
E4438C-503     Frequency Range, 250kHz to 3 GHz
E4438C-504     Frequency Range, 250kHz to 4 GHz
E4438C-506     Requires enhanced phase noise (UNJ), 250kHz to 6GHz
E4438C-601     Internal baseband generator, 8 Msa memory with digital bus capability
E4438C-602     Internal baseband generator, 64 Msa memory with digital bus capability
E4438C-A6J      ANSI Z540-1-1994 Calibration
E4438C-AMG   Calibration + Uncertainties + Guardbanding (Accredited)
E4438C-HBC    Provides frequency from 4GHz up to 6GHz In and Out on the rear panel
E4438C-HCC    Provides 250MHz to 4GHz in and out on the rear panel
E4438C-HEC    Provides external BBG clock input on rear panel
E4438C-HF8     Extends the Frequency to 7.0 GHz for the E4438C with unspecified performance
E4438C-SP1      Signal Studio for Jitter injection, fixed perpetual license
E4438C-SP2      Provides dynamic sequencing capability in the E4438C
E4438C-UK6     Commercial calibration certificate with test data
E4438C-UN7    Internal Bit Error Rate analyzer
E4438C-UNB    High output power with mechanical attenuator
E4438C-UNJ     Enhanced phase noise performance
N6171A               MATLAB Software
N6171A-M01      MATLAB-Basic Package, individual license - node-locked
N6171A-M02     MATLAB-Standard Package, individual license - node-locked
N6171A-M03     MATLAB-Advanced Package, individual license - node-locked
N7600B              Signal Studio for W-CDMA/HSPA+
N7600B-1FP     Connect to E4438C ESG, fixed perpetual license
N7600B-1TP     Connect to E4438C ESG, transportable perpetual license
N7600B-2FP     Connect to E8267D PSG, fixed perpetual license
N7600B-2TP     Connect to E8267D PSG, transportable perpetual license
N7600B-3FP     Connect to N5182/62 MXG, N5172 EXG, fixed perpetual license
N7600B-3TP     Connect to N5182/62 MXG, N5172 EXG, transportable perpetual license
N7600B-6FP     Connect to N5106A PXB, fixed perpetual license
N7600B-6TP     Connect to N5106A PXB, transportable perpetual license
N7600B-7FP     Connect to simulation software, fixed perpetual license
N7600B-7NP    Connect to simulation software, floating license
N7600B-8FP     Connect to E6607 EXT, fixed perpetual license
N7600B-8TP     Connect to E6607 EXT, transportable perpetual license
N7600B-9FP     Connect to M9381A and M9252A, fixed perpetual license
N7600B-9TP     Connect to M9381A and M9252A, transportable perpetual license
N7600B-EFP     Basic W-CDMA / HSPA R7, fixed perpetual license
N7600B-ENP    Basic W-CDMA / HSPA R7, floating license
N7600B-ETP     Basic W-CDMA / HSPA R7, transportable perpetual license
N7600B-FFP     Basic W-CDMA / HSPA+ R8, fixed perpetual license
N7600B-FNP    Basic W-CDMA / HSPA+ R8, floating license
N7600B-FTP     Basic W-CDMA / HSPA+ R8, transportable perpetual license
N7600B-LIC      License CD-ROM
N7600B-MEF    Minor enhancement update for floating options
N7600B-MEU   Minor enhancement update
N7600B-QFP    Advanced W-CDMA / HSPA+ R11, fixed perpetual license
N7600B-QNP   Advanced W-CDMA / HSPA+ R11, floating license
N7600B-QTP    Advanced W-CDMA / HSPA+ R11, transportable perpetual license
N7600B-WFP   Advanced W-CDMA/HSPA+ real-time R8 UL, fixed perpetual license
N7600B-WTP   Advanced W-CDMA/HSPA+ real-time R8 UL, transportable perpetual license
N7601B              Signal Studio for cdma2000/1xEV-DO
N7601B-1FP     Connect to E4438C ESG, fixed perpetual license
N7601B-1TP     Connect to E4438C ESG, transportable perpetual license
N7601B-2FP     Connect to E8267D PSG, fixed perpetual license
N7601B-2TP     Connect to E8267D PSG, transportable perpetual license
N7601B-3FP     Connect to N5182/62 MXG, N5172 EXG, fixed perpetual license
N7601B-3TP     Connect to N5182/62 MXG, N5172 EXG, transportable perpetual license
N7601B-6FP     Connect to N5106A PXB, fixed perpetual license
N7601B-6TP     Connect to N5106A PXB, transportable perpetual license
N7601B-7FP     Connect to simulation software, fixed perpetual license
N7601B-7NP    Connect to simulation software, floating license
N7601B-8FP     Connect to E6607 EXT, fixed perpetual license
N7601B-8TP     Connect to E6607 EXT, transportable perpetual license
N7601B-9FP     Connect to M9381A, fixed perpetual license
N7601B-9TP     Connect to M9381A, transportable perpetual license
N7601B-EFP     Basic cdma2000, fixed perpetual license
N7601B-ENP    Basic cdma2000, floating license
N7601B-ETP     Basic cdma2000, transportable perpetual license
N7601B-FFP     Basic 1xEV-DO, fixed perpetual license
N7601B-FNP    Basic 1xEV-DO, floating license
N7601B-FTP     Basic 1xEV-DO, transportable perpetual license
N7601B-LIC      License CD-ROM
N7601B-MEF    Minor enhancement update for floating options
N7601B-MEU    Minor enhancement update
N7601B-QFP     Advanced cdma2000, fixed perpetual license
N7601B-QNP    Advanced cdma2000, floating license
N7601B-QTP     Advanced cdma2000, transportable perpetual license
N7601B-RFP     Advanced 1xEV-DO, fixed perpetual license
N7601B-RNP    Advanced 1xEV-DO, floating license
N7601B-RTP     Advanced 1xEV-DO, transportable perpetual license
N7601B-WFP    Advanced cdma2000 real-time UL, fixed perpetual license
N7601B-WTP    Advanced cdma2000 real-time UL, transportable perpetual license
N7602B              Signal Studio for GSM/EDGE/Evo
N7602B-1FP     Connect to E4438C ESG, fixed perpetual license
N7602B-1TP     Connect to E4438C ESG, transportable perpetual license
N7602B-2FP     Connect to E8267D PSG, fixed perpetual license
N7602B-2TP     Connect to E8267D PSG, transportable perpetual license
N7602B-3FP     Connect to N5182/62 MXG, N5172 EXG, fixed perpetual license
N7602B-3TP     Connect to N5182/62 MXG, N5172 EXG, transportable perpetual license
N7602B-6FP     Connect to N5106A PXB, fixed perpetual license
N7602B-6TP     Connect to N5106A PXB, transportable perpetual license
N7602B-7FP     Connect to simulation software, fixed perpetual license
N7602B-7NP    Connect to simulation software, floating license
N7602B-8FP     Connect to E6607 EXT, fixed perpetual license
N7602B-8TP     Connect to E6607 EXT, transportable perpetual license
N7602B-9FP     Connect to M9381A, fixed perpetual license
N7602B-9TP     Connect to M9381A, transportable perpetual license
N7602B-EFP     Basic GSM/EDGE, fixed perpetual license
N7602B-ENP    Basic GSM/EDGE, floating license
N7602B-ETP     Basic GSM/EDGE, transportable perpetual license
N7602B-FFP     Basic EDGE Evo, fixed perpetual license
N7602B-FNP    Basic EDGE Evo, floating license
N7602B-FTP     Basic EDGE Evo, transportable perpetual license
N7602B-LIC      License CD-ROM
N7602B-MEF    Minor enhancement update for floating options
N7602B-MEU   Minor enhancement update
N7602B-QFP    Advanced GSM/EDGE/Evo, fixed perpetual license
N7602B-QNP   Advanced GSM/EDGE/Evo, floating license
N7602B-QTP    Advanced GSM/EDGE/Evo, transportable perpetual license
N7602B-WFP   Advanced GSM/EDGE real-time, fixed perpetual license
N7602B-WTP   Advanced GSM/EDGE real-time, transportable perpetual license
N7606B              Signal Studio for Bluetooth
N7606B-1FP     Connect to E4438C ESG, fixed perpetual license
N7606B-1TP     Connect to E4438C ESG, transportable perpetual license
N7606B-2FP     Connect to E8267D PSG, fixed perpetual license
N7606B-2TP     Connect to E8267D PSG, transportable perpetual license
N7606B-3FP     Connect to N5182/62 MXG, N5172 EXG, fixed perpetual license
N7606B-3TP     Connect to N5182/62 MXG, N5172 EXG, transportable perpetual license
N7606B-6FP     Connect to N5106A PXB, fixed perpetual license
N7606B-6TP     Connect to N5106A PXB, transportable perpetual license
N7606B-7FP     Connect to simulation software, fixed perpetual license
N7606B-7NP    Connect to simulation software, floating license
N7606B-8FP     Connect to E6607 EXT, fixed perpetual license
N7606B-8TP     Connect to E6607 EXT, transportable perpetual license
N7606B-9FP     Connect to M9381A or E6630A, fixed perpetual license
N7606B-9TP     Connect to M9381A or E6630A, transportable perpetual license
N7606B-LIC      License CD-ROM
N7606B-MEF    Minor enhancement update for floating options
N7606B-MEU   Minor enhancement update
N7606B-QFP    Advanced Bluetooth V 1.1, fixed perpetual license
N7606B-QNP   Advanced Bluetooth V 1.1, floating license
N7606B-QTP    Advanced Bluetooth V 1.1, transportable perpetual license
N7606B-RFP     Advanced Bluetooth V 2.1+EDR, fixed perpetual license
N7606B-RNP    Advanced Bluetooth V 2.1+EDR, floating license
N7606B-RTP    Advanced Bluetooth V 2.1+EDR, transportable perpetual license
N7606B-SFP     Advanced Bluetooth Low Energy, fixed perpetual license
N7606B-SNP    Advanced Bluetooth Low Energy, floating license
N7606B-STP     Advanced Bluetooth Low Energy, transportable perpetual license
N7607B              Signal Studio for DFS Radar Profiles
N7607B-1FP     Connect to E4438C ESG, fixed perpetual license
N7607B-1TP     Connect to E4438C ESG, transportable perpetual license
N7607B-2FP     Connect to E8267D PSG, fixed perpetual license
N7607B-2TP     Connect to E8267D PSG, transportable perpetual license
N7607B-3FP     Connect to N5182/62 MXG, N5172 EXG, fixed perpetual license
N7607B-3TP     Connect to N5182/62 MXG, N5172 EXG, transportable perpetual license
N7607B-EFP     DFS profiles for FCC, ETSI, Japan MIC and Korean, fixed perpetual license
N7607B-ETP     DFS profiles for FCC, ETSI, Japan MIC and Korean, fixed transportable license
N7608B              Signal Studio for Custom Modulation
N7608B-1FP     Connect to E4438C ESG, fixed perpetual license
N7608B-1TP     Connect to E4438C ESG, transportable perpetual license
N7608B-2FP     Connect to E8267D PSG, fixed perpetual license
N7608B-2TP     Connect to E8267D PSG, transportable perpetual license
N7608B-3FP     Connect to N5182/62 MXG, N5172 EXG, fixed perpetual license
N7608B-3TP     Connect to N5182/62 MXG, N5172 EXG, transportable perpetual license
N7608B-AFP     Connect to M8190A AWG, fixed perpetual license
N7608B-ATP     Connect to M8190A AWG, transportable perpetual license
N7608B-EFP     Custom IQ, fixed perpetual license
N7608B-ETP     Custom IQ, transportable perpetual license
N7608B-FFP     Custom OFDM, fixed perpetual license
N7608B-FTP     Custom OFDM, transportable perpetual license
N7608B-GFP    Custom 5G, fixed perpetual license
N7608B-GTP    Custom 5G, transportable perpetual license
N7609B              Signal Studio for Global Navigation Satellite Systems (GNSS)
N7609B-1FP     Connect to E4438C ESG, fixed perpetual license
N7609B-1TP     Connect to E4438C ESG, transportable perpetual license
N7609B-2FP     Connect to E8267D PSG, fixed perpetual license
N7609B-2TP     Connect to E8267D PSG, transportable perpetual license
N7609B-3FP     Connect to N5182 MXG, N5172 EXG, fixed perpetual license
N7609B-3TP     Connect to N5182 MXG, N5172 EXG, transportable perpetual license
N7609B-6FP     Connect to N5106A PXB, fixed perpetual license
N7609B-6TP     Connect to N5106A PXB, transportable perpetual license
N7609B-8FP     Connect to E6607 EXT, fixed perpetual license
N7609B-8TP     Connect to E6607 EXT, transportable perpetual license
N7609B-9FP     Connect to M9381A or E6630A, fixed perpetual license
N7609B-9TP     Connect to M9381A or E6630A, transportable perpetual license
N7609B-EFP     Basic single and multi-satellite waveforms, fixed perpetual license
N7609B-ETP     Basic single and multi-satellite waveforms, transportable perpetual license
N7609B-MEU    Minor enhancement update
N7609B-NFP    Real-time CW interference signal, fixed perpetual license
N7609B-NTP    Real-time CW interference signal, transportable perpetual license
N7609B-PFP     Advanced GPS real-time and scenario generation, fixed perpetual license
N7609B-PTP     Advanced GPS real-time and scenario generation, transportable perpetual license
N7609B-SFP     Advanced GLONASS real-time and scenario generation, fixed perpetual license
N7609B-STP     Advanced GLONASS real-time and scenario generation, transportable perpetual license
N7609B-UFP    Advanced Galileo real-time and scenario generation, fixed perpetual license
N7609B-UTP    Advanced Galileo real-time and scenario generation, transportable perpetual license
N7609B-WFP   Advanced Beidou real-time and scenario generation, fixed perpetual license
N7609B-WTP   Advanced Beidou real-time and scenario generation, transportable perpetual license
N7609B-XFP     Advanced SBAS/QZSS real-time and scenario generation, fixed perpetual license
N7609B-XTP     Advanced SBAS/QZSS real-time and scenario generation, transportable perpetual license
N7610B              Signal Studio for Short Range Communications
N7610B-1FP     Connect to E4438C ESG, fixed perpetual license
N7610B-1TP     Connect to E4438C ESG, transportable perpetual license
N7610B-2FP     Connect to E8267D PSG, fixed perpetual license
N7610B-2TP     Connect to E8267D PSG, transportable perpetual license
N7610B-3FP     Connect to N5182 MXG, N5172 EXG, fixed perpetual license
N7610B-3TP     Connect to N5182 MXG, N5172 EXG, transportable perpetual license
N7610B-9FP     Connect to M9381A PXIe VSG, fixed perpetual license
N7610B-9TP     Connect to M9381A PXIe VSG, transportable perpetual license
N7610B-QFP    Advanced 802.15.4g MR-FSK for Wi-SUN, fixed perpetual license
N7610B-QTP    Advanced 802.15.4g MR-FSK for Wi-SUN, transportable perpetual license
N7610B-RFP     Advanced 802.15.4g MR-OFDM for Wi-SUN, fixed perpetual license
N7610B-RTP    Advanced 802.15.4g MR-OFDM for Wi-SUN, transportable perpetual license
N7610B-SFP     Advanced 802.15.4 O-QPSK for ZigBee, fixed perpetual license
N7610B-STP     Advanced 802.15.4 O-QPSK for ZigBee, transportable perpetual license
N7611B              Signal Studio for Broadcast Radio
N7611B-1FP     Connect to E4438C ESG, fixed perpetual license
N7611B-1TP     Connect to E4438C ESG, transportable perpetual license
N7611B-3FP     Connect to N5182/62 MXG, N5172 EXG, fixed perpetual license
N7611B-3TP     Connect to N5182/62 MXG, N5172 EXG, transportable perpetual license
N7611B-6FP     Connect to N5106A PXB, fixed perpetual license
N7611B-6TP     Connect to N5106A PXB, transportable perpetual license
N7611B-7FP     Connect to simulation software, fixed perpetual license
N7611B-7NP    Connect to simulation software, floating license
N7611B-8FP     Connect to E6607 EXT, fixed perpetual license
N7611B-8TP     Connect to E6607 EXT, transportable perpetual license
N7611B-9FP     Connect to M9381A, fixed perpetual license
N7611B-9TP     Connect to M9381A, transportable perpetual license
N7611B-LIC      License CD-ROM
N7611B-QFP    Advanced FM stereo/RDS, fixed perpetual license
N7611B-QNP   Advanced FM stereo/RDS, floating license
N7611B-QTP    Advanced FM stereo/RDS, transportable perpetual license
N7611B-RFP     Advanced DAB/DAB+/DMB, fixed perpetual license
N7611B-RNP    Advanced DAB/DAB+/DMB, floating license
N7611B-RTP    Advanced DAB/DAB+/DMB, transportable perpetual license
N7611B-SFP     ETI support for DAB/DMB, fixed perpetual license
N7611B-SNP    ETI support for DAB/DMB, floating license
N7611B-STP     ETI support for DAB/DMB, transportable perpetual license
N7612B              Signal Studio for TD-SCDMA/HSPA
N7612B-1FP     Connect to E4438C ESG, fixed perpetual license
N7612B-1TP     Connect to E4438C ESG, transportable perpetual license
N7612B-3FP     Connect to N5182/62 MXG, N5172 EXG, fixed perpetual license
N7612B-3TP     Connect to N5182/62 MXG, N5172 EXG, transportable perpetual license
N7612B-6FP     Connect to N5106A PXB, fixed perpetual license
N7612B-6TP     Connect to N5106A PXB, transportable perpetual license
N7612B-7FP     Connect to simulation software, fixed perpetual license
N7612B-7NP    Connect to simulation software, floating license
N7612B-8FP     Connect to E6607 EXT, fixed perpetual license
N7612B-8TP     Connect to E6607 EXT, transportable perpetual license
N7612B-9FP     Connect to M9381A, fixed perpetual license
N7612B-9TP     Connect to M9381A, transportable perpetual license
N7612B-EFP     Basic TD-SCDMA/HSPA, fixed perpetual license
N7612B-ENP    Basic TD-SCDMA/HSPA, floating license
N7612B-ETP     Basic TD-SCDMA/HSPA, transportable perpetual license
N7612B-LIC      License CD-ROM
N7612B-MEF    Minor enhancement update for floating options
N7612B-MEU   Minor enhancement update
N7612B-QFP    Advanced TD-SCDMA/HSPA, fixed perpetual license
N7612B-QNP   Advanced TD-SCDMA/HSPA, floating license
N7612B-QTP    Advanced TD-SCDMA/HSPA, transportable perpetual license
N7613A              Signal Studio for Fixed WiMAX软件
N7614B              Signal Studio for Power Amplifier Test
N7614B-1FP     Connect to E4438C ESG, fixed perpetual license
N7614B-1TP     Connect to E4438C ESG, transportable perpetual license
N7614B-3FP     Connect to N5182/62 MXG, N5172 EXG, fixed perpetual license
N7614B-3TP     Connect to N5182/62 MXG, N5172 EXG, transportable perpetual license
N7614B-9FP     Connect to M9381A, fixed perpetual license
N7614B-9TP     Connect to M9381A, transportable perpetual license
N7614B-AFP     Connect to M8190A arbitrary waveform generator, fixed perpetual license
N7614B-ATP     Connect to M8190A arbitrary waveform generator, transportable perpetual license
N7614B-EFP     Envelope Tracking, fixed perpetual license
N7614B-ETP     Envelope Tracking, transportable perpetual license
N7614B-FFP     Digital Pre-Distortion, fixed perpetual license
N7614B-FTP     Digital Pre-Distortion, transportable perpetual license
N7614B-GFP    Real-time ET and Digital Pre-distortion, fixed perpetual license
N7614B-GTP    Real-time ET and Digital Pre-distortion, transportable perpetual license
N7615B              Signal Studio for Mobile WiMAX
N7615B-1FP     Connect to E4438C ESG, fixed perpetual license
N7615B-1TP     Connect to E4438C ESG, transportable perpetual license
N7615B-3FP     Connect to N5182/62 MXG, N5172 EXG, fixed perpetual license
N7615B-3TP     Connect to N5182/62 MXG, N5172 EXG, transportable perpetual license
N7615B-6FP     Connect to N5106A PXB, fixed perpetual license
N7615B-6TP     Connect to N5106A PXB, transportable perpetual license
N7615B-7FP     Connect to simulation software, fixed perpetual license
N7615B-7NP    Connect to simulation software, floating license
N7615B-8FP     Connect to E6607 EXT, fixed perpetual license
N7615B-8TP     Connect to E6607 EXT, transportable perpetual license
N7615B-9FP     Connect to M9381A, fixed perpetual license
N7615B-9TP     Connect to M9381A, transportable perpetual license
N7615B-EFP     Basic Mobile WiMAX, fixed perpetual license
N7615B-ENP    Basic Mobile WiMAX, floating license
N7615B-ETP     Basic Mobile WiMAX, transportable perpetual license
N7615B-LIC      License CD-ROM
N7615B-QFP    Advanced Mobile WiMAX, fixed perpetual license
N7615B-QNP   Advanced Mobile WiMAX, floating license
N7615B-QTP    Advanced Mobile WiMAX, transportable perpetual license
N7615B-RFP     Advanced Mobile WiMAX 802.16 Updates, fixed perpetual license
N7615B-RNP    Advanced Mobile WiMAX 802.16 Updates, floating license
N7615B-RTP     Advanced Mobile WiMAX 802.16 Updates, transportable perpetual license
N7617B              Studio for WLAN 802.11a/b/g/j/p/n/ac/ah
N7617B-1FP     Connect to E4438C ESG, fixed perpetual license
N7617B-1TP     Connect to E4438C ESG, transportable perpetual license
N7617B-2FP     Connect to E8267D PSG, fixed perpetual license
N7617B-2TP     Connect to E8267D PSG, transportable perpetual license
N7617B-3FP     Connect to N5182/62 MXG, N5172 EXG, fixed perpetual license
N7617B-3TP     Connect to N5182/62 MXG, N5172 EXG, transportable perpetual license
N7617B-6FP     Connect to N5106A PXB, fixed perpetual license
N7617B-6TP     Connect to N5106A PXB, transportable perpetual license
N7617B-7FP     Connect to simulation software, fixed perpetual license
N7617B-7NP    Connect to simulation software, floating license
N7617B-9FP     Connect to M9381A or E6630A, fixed perpetual license
N7617B-9TP     Connect to M9381A or E6630A, transportable perpetual license
N7617B-AFP     Connect to M8190A arbitrary waveform generator, fixed perpetual license
N7617B-ATP     Connect to M8190A arbitrary waveform generator, transportable perpetual license
N7617B-FFP     Basic 802.11a/b/g/j/p/n WLAN, fixed perpetual license
N7617B-FNP    Basic 802.11a/b/g/j/p/n WLAN, floating license
N7617B-FTP     Basic 802.11a/b/g/j/p/n WLAN, transportable perpetual license
N7617B-GFP    Basic 802.11ac WLAN, fixed perpetual license
N7617B-GNP   Basic 802.11ac WLAN, floating license
N7617B-GTP    Basic 802.11ac WLAN, transportable perpetual license
N7617B-JFP      Basic 802.11ah WLAN, fixed perpetual license
N7617B-JNP     Basic 802.11ah WLAN, floating license
N7617B-JTP     Basic 802.11ah WLAN, transportable perpetual license
N7617B-LIC      License CD-ROM
N7617B-MEF    Minor enhancement update for floating options
N7617B-MEU    Minor enhancement update
N7617B-RFP     Advanced 802.11a/b/g/j/p/n WLAN, fixed perpetual license
N7617B-RNP    Advanced 802.11a/b/g/j/p/n WLAN, floating license
N7617B-RTP    Advanced 802.11a/b/g/j/p/n WLAN, transportable perpetual license
N7617B-TFP     Advanced 802.11ac WLAN, fixed perpetual license
N7617B-TNP    Advanced 802.11ac WLAN, floating license
N7617B-TTP     Advanced 802.11ac WLAN, transportable perpetual license
N7617B-UFP    Advanced 802.11ah WLAN, fixed perpetual license
N7617B-UNP   Advanced 802.11ah WLAN, floating license
N7617B-UTP    Advanced 802.11ah WLAN, transportable perpetual license
N7620B              Signal Studio for Pulse Building
N7620B-1FP     Connect to E4438C ESG, fixed perpetual license
N7620B-1TP     Connect to E4438C ESG, transportable perpetual license
N7620B-2FP     Connect to E8267D PSG, fixed perpetual license
N7620B-2TP     Connect to E8267D PSG, transportable perpetual license
N7620B-3FP     Connect to N5172B/N5182B EXG/MXG, fixed perpetual license
N7620B-3TP     Connect to N5172B/N5182B EXG/MXG, transportable perpetual license
N7620B-AFP     Connect to M8190A arbitrary waveform generator, fixed perpetual license
N7620B-ATP     Connect to M8190A arbitrary waveform generator, transportable perpetual license
N7620B-DFP    Connect to N824xA/N603xA, M93xx, fixed perpetual license
N7620B-EFP     Basic pulse building - pulse patterns, fixed perpetual license
N7620B-ETP     Basic pulse building - pulse patterns, transportable perpetual license
N7620B-LIC      License on CD-ROM
N7620B-QFP     Advanced pulse building - antenna and PRI, fixed perpetual license
N7620B-QTP     Advanced pulse building - antenna and PRI, transportable perpetual license
N7621B              Signal Studio for Multitone Distortion
N7621B-1FP     Connect to E4438C ESG, fixed perpetual license
N7621B-1TP     Connect to E4438C ESG, transportable perpetual license
N7621B-2FP     Connect to E8267D PSG, fixed perpetual license
N7621B-2TP     Connect to E8267D PSG, transportable perpetual license
N7621B-3FP     Connect to N5182/62 MXG, N5172 EXG, fixed perpetual license
N7621B-3TP     Connect to N5182/62 MXG, N5172 EXG, transportable perpetual license
N7621B-AFP     Connect to M8190A, fixed perpetual license
N7621B-ATP     Connect to M8190A, transportable perpetual license
N7621B-DFP    Connect to N824xA/N603xA/M933x, fixed perpetual license
N7621B-EFP     Enhanced Multitone, fixed perpetual license
N7621B-ETP     Enhanced Multitone, transportable perpetual license
N7621B-FFP     Noise Power Ratio (NPR), fixed perpetual license
N7621B-FTP     Noise Power Ratio (NPR), transportable perpetual license
N7621B-LIC      License CD ROM
N7622B              Signal Studio 工具套件
N7623B              Signal Studio for Digital Video
N7623B-1FP     Connect to E4438C ESG, fixed perpetual license
N7623B-1TP     Connect to E4438C ESG, transportable perpetual license
N7623B-2FP     Connect to E8267D PSG, fixed perpetual license
N7623B-2TP     Connect to E8267D PSG, transportable perpetual license
N7623B-3FP     Connect to N5182/62 MXG, N5172 EXG, fixed perpetual license
N7623B-3TP     Connect to N5182/62 MXG, N5172 EXG, transportable perpetual license
N7623B-6FP     Connect to N5106A PXB, fixed perpetual license
N7623B-6TP     Connect to N5106A PXB, transportable perpetual license
N7623B-7FP     Connect to simulation software, fixed perpetual license
N7623B-7NP    Connect to simulation software, floating license
N7623B-8FP     Connect to E6607 EXT, fixed perpetual license
N7623B-8TP     Connect to E6607 EXT, transportable perpetual license
N7623B-9FP     Connect to M9381A, fixed perpetual license
N7623B-9TP     Connect to M9381A, transportable perpetual license
N7623B-EFP     Advanced DVB-T/H real time, fixed perpetual license
N7623B-ETP     Advanced DVB-T/H real-time, transportable perpetual license
N7623B-FFP     Advanced DVB-C/J.83 Annex A/C real-time, fixed perpetual license
N7623B-FTP     Advanced DVB-C/J.83 Annex A/C real-time, transportable perpetual license
N7623B-GFP    Advanced DVB-S/S2 real-time, fixed perpetual license
N7623B-GTP    Advanced DVB-S/S2 real-time, transportable perpetual license
N7623B-HFP    Advanced DVB-T2 real-time, fixed perpetual license
N7623B-HTP    Advanced DVB-T2 real-time, transportable perpetual license
N7623B-JFP      Advanced ISDB-T real-time, fixed perpetual license
N7623B-JTP     Advanced ISDB-T real-time, transportable perpetual license
N7623B-LIC      License CD-ROM
N7623B-MEF    Minor enhancement update for floating options
N7623B-MEU   Minor enhancement update
N7623B-MFP    Advanced ISDB-Tmm, ISDB-T enhancement, fixed perpetual license
N7623B-MNP   Advanced ISDB-Tmm, ISDB-T enhancement, floating license
N7623B-MTP   Advanced ISDB-Tmm, ISDB-T enhancement, transportable perpetual license
N7623B-NFP    Advanced ATSC-M/H, fixed perpetual license
N7623B-NNP   Advanced ATSC-M/H, floating license
N7623B-NTP    Advanced ATSC-M/H, transportable perpetual license
N7623B-PFP     Advanced BER tools, fixed perpetual license
N7623B-PNP    Advanced BER tools, floating license
N7623B-PTP     Advanced BER tools, transportable perpetual license
N7623B-QFP    Advanced DVB-T/H/C/J.83 Annex A/C, fixed perpetual license
N7623B-QNP   Advanced DVB-T/H/C/J.83 Annex A/C, floating license
N7623B-QTP    Advanced DVB-T/H/C/J.83 Annex A/C, transportable perpetual license
N7623B-RFP     Advanced ISDB-T, fixed perpetual license
N7623B-RNP    Advanced ISDB-T, floating license
N7623B-RTP    Advanced ISDB-T, transportable perpetual license
N7623B-SFP     Advanced DTMB, fixed perpetual license
N7623B-SNP    Advanced DTMB, floating license
N7623B-STP     Advanced DTMB, transportable perpetual license
N7623B-UFP    Advanced ATSC, fixed perpetual license
N7623B-UNP   Advanced ATSC, floating license
N7623B-UTP    Advanced ATSC, transportable perpetual license
N7623B-VFP     Advanced DVB-S, fixed perpetual license
N7623B-VNP    Advanced DVB-S, floating license
N7623B-VTP    Advanced DVB-S, transportable perpetual license
N7623B-WFP   Advanced DVB-S2, fixed perpetual license
N7623B-WNP  Advanced DVB-S2, floating license
N7623B-WTP   Advanced DVB-S2, transportable perpetual license
N7623B-XFP     Advanced J.83 Annex B, DOCSIS DS, fixed perpetual license
N7623B-XNP    Advanced J.83 Annex B, DOCSIS DS, floating license
N7623B-XTP     Advanced J.83 Annex B, DOCSIS DS, transportable perpetual license
N7623B-YFP     Advanced CMMB, fixed perpetual license
N7623B-YNP    Advanced CMMB, floating license
N7623B-YTP     Advanced CMMB, transportable perpetual license
N7623B-ZFP     Advanced DVB-T2, fixed perpetual license
N7623B-ZNP    Advanced DVB-T2, floating license
N7623B-ZTP     Advanced DVB-T2, transportable perpetual license
N7624B              Signal Studio for LTE/LTE-Advanced FDD
N7624B-1FP     Connect to E4438C ESG, fixed perpetual license
N7624B-1TP     Connect to E4438C ESG, transportable perpetual license
N7624B-3FP     Connect to N5182/62 MXG, N5172 EXG, fixed perpetual license
N7624B-3TP     Connect to N5182/62 MXG, N5172 EXG, transportable perpetual license
N7624B-6FP     Connect to N5106A PXB, fixed perpetual license
N7624B-6TP     Connect to N5106A PXB, transportable perpetual license
N7624B-7FP     Connect to simulation software, fixed perpetual license
N7624B-7NP    Connect to simulation software, floating license
N7624B-8FP     Connect to E6607 EXT, fixed perpetual license
N7624B-8TP     Connect to E6607 EXT, transportable perpetual license
N7624B-9FP     Connect to M9381A and M9252A, fixed perpetual license
N7624B-9TP     Connect to M9381A and M9252A, transportable perpetual license
N7624B-HFP    Basic LTE FDD, fixed perpetual license
N7624B-HNP   Basic LTE FDD, floating license
N7624B-HTP    Basic LTE FDD, transportable perpetual license
N7624B-JFP      Basic LTE-Advanced FDD, fixed perpetual license
N7624B-JNP     Basic LTE-Advanced FDD, floating license
N7624B-JTP     Basic LTE-Advanced FDD, transportable perpetual license
N7624B-KFP     Envelope tracking, fixed perpetual license
N7624B-KNP    Envelope tracking, floating license
N7624B-KTP     Envelope tracking, transportable perpetual license
N7624B-LFP     Multi-UE Simulation, fixed perpetual license
N7624B-LIC      License CD ROM
N7624B-LTP     Multi-UE Simulation, transportable perpetual license
N7624B-MEF    Minor enhancement update for floating options
N7624B-MEU    Minor enhancement update
N7624B-SFP     Advanced LTE FDD, fixed perpetual license
N7624B-SNP    Advanced LTE FDD, floating license
N7624B-STP     Advanced LTE FDD, transportable perpetual license
N7624B-TFP     Advanced LTE-Advanced FDD, fixed perpetual license
N7624B-TNP    Advanced LTE-Advanced FDD, floating license
N7624B-TTP     Advanced LTE-Advanced FDD, transportable perpetual license
N7624B-WFP   Advanced LTE/LTE-Advanced FDD real-time R9/R10 UL, fixed perpetual license
N7624B-WTP   Advanced LTE/LTE-Advanced FDD real-time R9/R10 UL, transportable perpetual license
N7625B             Signal Studio for LTE/LTE-Advanced TDD
N7625B-1FP     Connect to E4438C ESG, fixed perpetual license
N7625B-1TP     Connect to E4438C ESG, transportable perpetual license
N7625B-3FP     Connect to N5182/62 MXG, N5172 EXG, fixed perpetual license
N7625B-3TP     Connect to N5182/62 MXG, N5172 EXG, transportable perpetual license
N7625B-6FP     Connect to N5106A PXB, fixed perpetual license
N7625B-6TP     Connect to N5106A PXB, transportable perpetual license
N7625B-7FP     Connect to simulation software, fixed perpetual license
N7625B-7NP    Connect to simulation software, floating license
N7625B-8FP     Connect to E6607 EXT, fixed perpetual license
N7625B-8TP     Connect to E6607 EXT, transportable perpetual license
N7625B-9FP     Connect to M9381A and M9252A, fixed perpetual license
N7625B-9TP     Connect to M9381A and M9252A, transportable perpetual license
N7625B-EFP     Basic LTE TDD, fixed perpetual license
N7625B-ENP    Basic LTE TDD, floating license
N7625B-ETP     Basic LTE TDD, transportable perpetual license
N7625B-JFP      Basic LTE-Advanced TDD, fixed perpetual license
N7625B-JNP     Basic LTE-Advanced TDD, floating license
N7625B-JTP     Basic LTE-Advanced TDD, transportable perpetual license
N7625B-KFP     Envelope tracking, fixed perpetual license
N7625B-KNP    Envelope tracking, floating license
N7625B-KTP     Envelope tracking, transportable perpetual license
N7625B-LFP     Multi-UE Simulation, fixed perpetual license
N7625B-LIC      License on CD RoM
N7625B-LTP     Multi-UE Simulation, transportable perpetual license
N7625B-MEF    Minor enhancement update for floating options
N7625B-MEU    Minor enhancement update
N7625B-QFP    Advanced LTE TDD, fixed perpetual license
N7625B-QNP   Advanced LTE TDD, floating license
N7625B-QTP    Advanced LTE TDD, transportable perpetual license
N7625B-TFP     Advanced LTE-Advanced TDD, fixed perpetual license
N7625B-TNP    Advanced LTE-Advanced TDD, floating license
N7625B-TTP     Advanced LTE-Advanced TDD, transportable perpetual license
N7625B-WFP   Advanced LTE/LTE-Advanced TDD real-time R9/R10 UL, fixed perpetual license
N7625B-WTP   Advanced LTE/LTE-Advanced TDD real-time R9/R10 UL, transportable perpetual license

Agilent E4438C -01Agilent E4438C -02Agilent E4438C -03Agilent E4438C -04

苏州优品电子有限公司 电子测试测量仪表一站式服务商
86-512-68050516 手机:18914031336
Email:18914031336@youpinelectronic.com
官方微信
苏州优品电子有限公司  地址:苏州市高新区滨河路625号创业大厦3幢501室
© 2015-2019 苏州优品电子有限公司  苏ICP备15048037号-1
