是德(安捷伦)E4404B ESA-E 系列频谱分析仪

  • 是德(安捷伦)
  • E4404B
  • 物品状况: 二手


0.4 dB的总体幅度精度
比其它所有信号分析仪和频谱分析仪快30300%
5 ms的标记峰值搜索速度
+16 dBm TOI
-167 dBm DANL,带有内置前置放大器
75 ms的测量/模式切换速度
1 Hz窄分辨率带宽(可选)




ESA-E系列是能适应未来需要的 中性能频谱分析仪解决方案。该系列在测量速度、动态范围、精度和功率分辨能力上,都为类似价位的产品建立了性能标准。它灵活的平台设计使研发、制造和现场服务工程师能自定义产品,以满足特定测试要求,和在需要时用新的特性升级产品。该产品采用单键测量解决方案,并具有易于浏览的用户界面和高速测量的性能,使工程师能把较少的时间用于测试,而把更多的时间用在元件和产品的设计、制作和查错上。




E4404B-042     Gray spectrum analyzer backpack
E4404B-044     Yellow spectrum analyzer backpack
E4404B-060     Reduced emissions
E4404B-106     Bluetooth FM demodulator
E4404B-120     Enhanced Wide Offset Phase Noise and ACPR Dynamic Range
E4404B-1AX     RS-232 and Centronics interface
E4404B-1CP     Rackmount and handle kit
E4404B-1D5     High stability frequency reference
E4404B-1D6     Time-gated spectrum analysis, fixed perpetual license
E4404B-1D7     50 -75 ohm minimum loss pad(s)
E4404B-1DN    Tracking generator
E4404B-1DR    Narrow resolution bandwidths
E4404B-1DS     Preamp
E4404B-219     Noise figure measurement personality and hardware, fixed perpetual license
E4404B-225     Cable fault location measurement personality, fixed perpetual license
E4404B-226     Phase noise measurement personality, fixed perpetual license
E4404B-227     Cable TV measurement personality, fixed perpetual license
E4404B-228     Bluetooth measurement personality, fixed perpetual license
E4404B-229     Modulation analysis measurement personality, fixed perpetual license
E4404B-230     BenchLink web remote control software
E4404B-231     ESA to 89600 series software link update
E4404B-252     EDGE upgrade to GSM measurement personality, fixed perpetual license
E4404B-266     8566/8568 programming code compatibility suite
E4404B-290     859x programming code compatibilty
E4404B-304     Bluetooth premium opt. Bundle
E4404B-A5D    12 Vdc power cable
E4404B-A6J      ANSI Z540-1-1994 Calibration
E4404B-AKT     Russia - Russian localization (includes English manual set)
E4404B-AMG    Calibration + Uncertainties + Guardbanding (Accredited)
E4404B-AXT      Add transit case
E4404B-AYQ      FM demodulation and quasi peak detector
E4404B-AYT      Gray soft carrying/operating case
E4404B-AYU     Yellow soft carrying/operating case
E4404B-AYX      Fast time domain sweep
E4404B-B75      Performance opts. Bundle
E4404B-B7B     TV trigger and picture on screen
E4404B-B7D     Digital signal processing and fast ADC
E4404B-B7E      RF communications hardware
E4404B-B7K     Cable fault measurement kit
E4404B-BAA      FM demodulation
E4404B-BAC     CDMAOne measurement personality, fixed perpetual license
E4404B-BAH     GSM/GPRS measurement personality, fixed perpetual license
E4404B-COM   Communication test analyzer (1D5, 1DR, B7D, B7E, BAA)
E4404B-H70     70MHz IF out
E4404B-J36      FM deviation personality - enhanced, fixed perpetual license
E4404B-STD     Standard analyzer (AYX, BAA)
E4404B-STG     Standard analyzer with tracking generator (1DN, AYX, BAA)
E4404B-UK6     Commercial calibration certificate with test data
E4404B-UK9     Front panel cover
E4404B-UKB    100 Hz low frequency extension
BV0005A            BenchVue Spectrum Analyzer Pro Software License
E1779B              充电式电池组

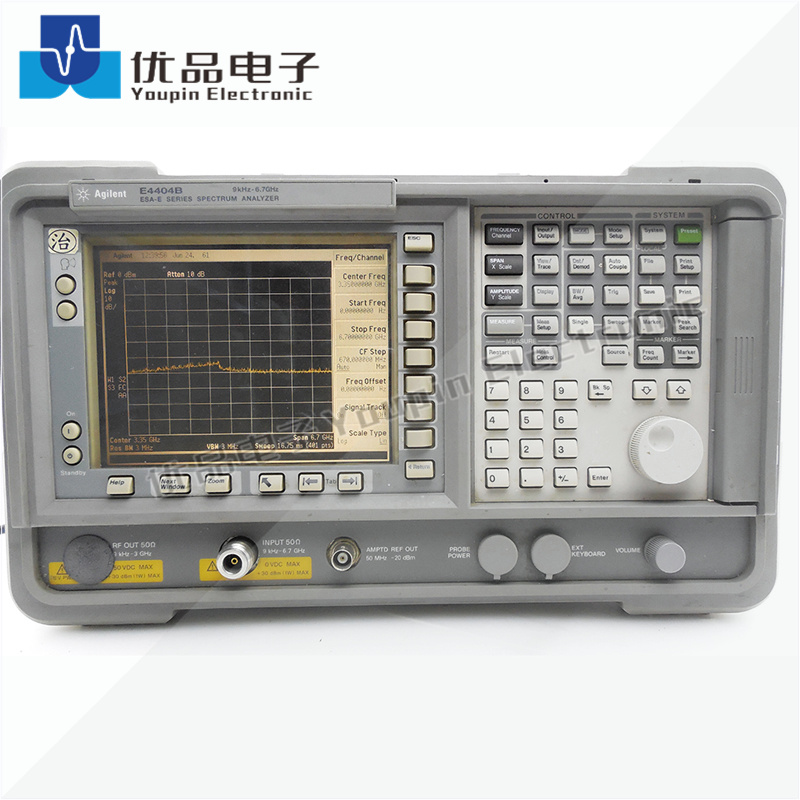

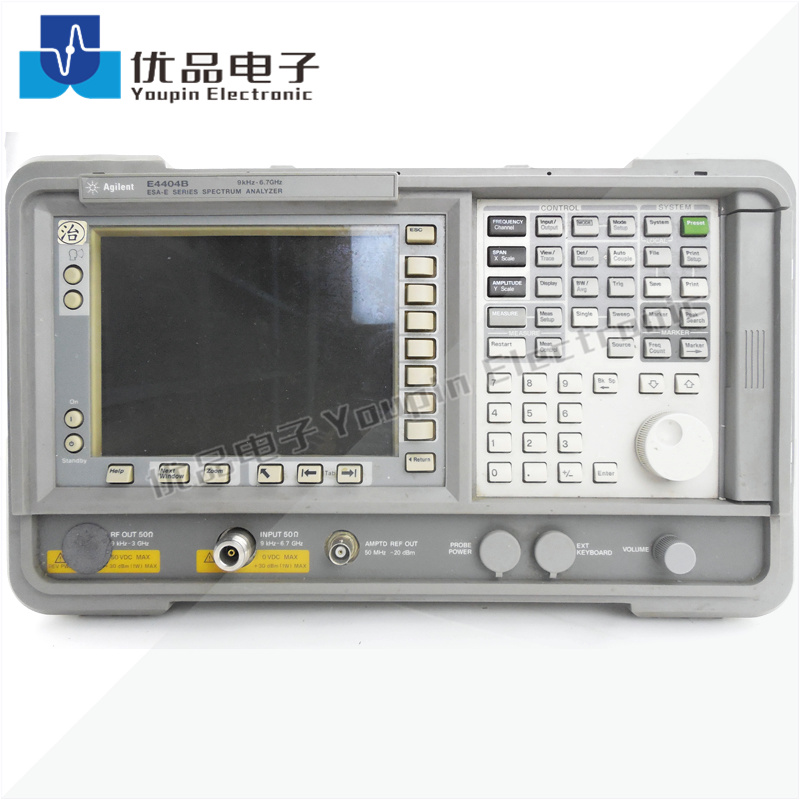

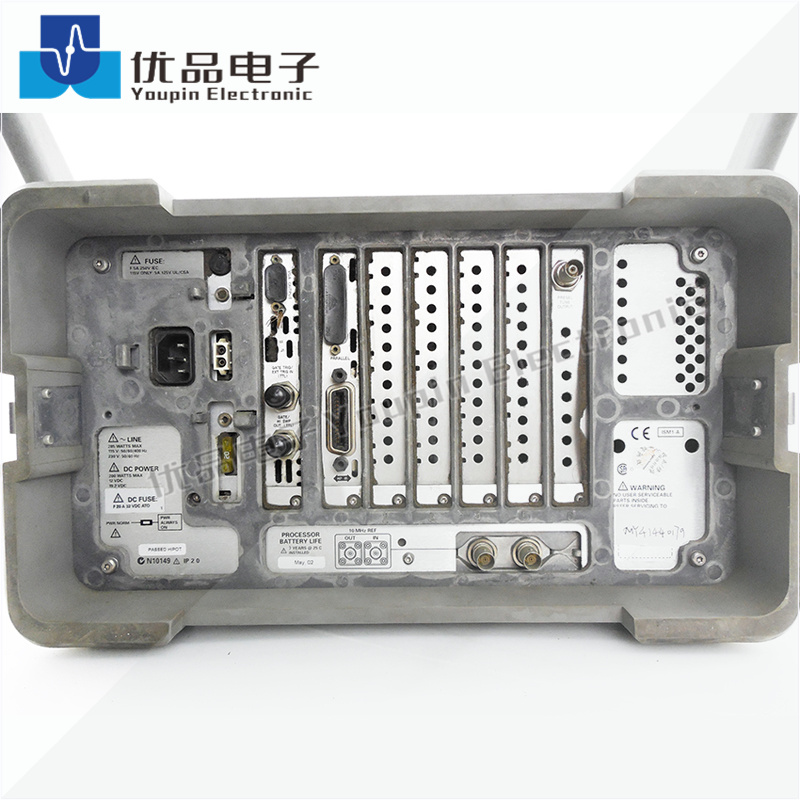

Agilent E4404B -01 Agilent E4404B -03 Agilent E4404B -04
